INSTALLATION

1.

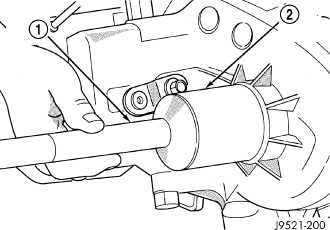

Install new front output seal in front case with Seal Installer 9041 (2) and Universal Handle C-4171 (1).

2.

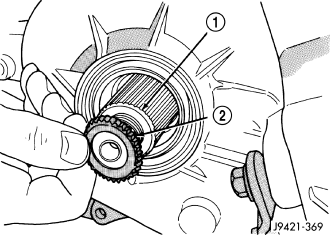

Install yoke seal (2) on front output shaft (1).

3.

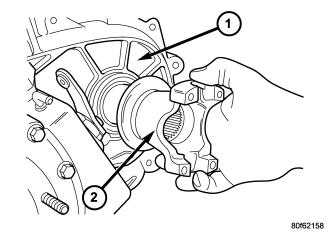

Install yoke (2) on front output shaft. Install a new yoke nut onto the front output shaft.

4.

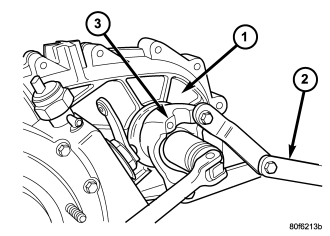

Using Spanner Wrench 6958 (2), tighten the yoke nut to 176-271 Nm (130-200 ft. lbs.) torque.
5.
Install propeller shaft.
(Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER SHAFT - INSTALLATION)
