REMOVAL
1.
Shift transfer case into NEUTRAL.
2.
Raise vehicle.
3.
Remove front propeller shaft.
(Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER SHAFT - REMOVAL)
4.

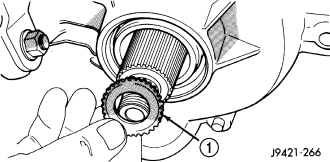

Using Spanner Wrench 6958 (2), remove yoke nut. Discard nut after removal. It is not reusable.
5.
Remove yoke (2) from output shaft. Use puller C-452 if flange can not be removed by hand.
6.
Remove yoke rubber seal (1) from front output shaft.
7.
Remove front output shaft seal with suitable pry tool, or a slide hammer mounted screw.
