INSTALLATION

1. Clean fluid residue from sealing surface and inspect for defects.

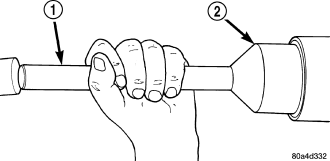

2. Using Seal Installer 9041 (2) and Universal Handle C-4171 (1), install seal in rear extension.
3. Install the companion flange onto the output shaft.
4. Install a new companion flange nut and tighten to 176-271 Nm (130-200 ft.lbs.).
5. Install propeller shaft. (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER SHAFT - INSTALLATION)
6. Verify proper transfer case fluid level.
7. Lower vehicle.
