OPERATION

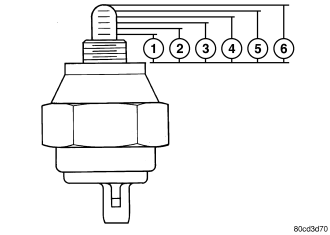

| Position Sensor Linear Movement |
1 - POSITION 1 - 10mm +/-0.5mm
|
2 - POSITION 2 - 12mm +/-0.5mm
|
3 - POSITION 3 - 14mm +/-0.5mm
|
4 - POSITION 4 - 16mm +/-0.5mm
|
5 - POSITION 5 - 18mm +/-0.5mm
|
6 - POSITION 6 - 20mm+/-0.5mm - FULL EXTENSION
|
During normal vehicle operation, the Powertrain Control Module (PCM) monitors the transfer case position sensor return voltage to determine the operating mode of the transfer case. Refer to
the Operating Mode Versus Resistance table for the correct resistance for each position.
Operating Mode Versus Resistance
SENSOR POSITION
|
OPERATING MODE
|
SENSOR RESISTANCE (ohms)
|
1
|
2WD
|
1124-1243
|
2
|
4WD PART TIME
|
650-719
|
3
|
4WD FULL TIME
|
389-431
|
4
|
NEUTRAL
|
199-221
|
5
|
4WD LOW
|
57-64
|
