RETURN HOSE

1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Remove the air box assembly (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL).
3. Remove the clamp (3) for the return hose (4) at the reservoir (1) and then remove the hose.

4. Move the coolant bottle to the side out of the way.
5. Remove the return hose (1) at the gear.

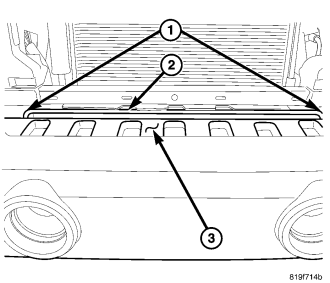

6. Remove the grille (Refer to 23 - BODY/EXTERIOR/GRILLE - REMOVAL).
7. Remove the panel in between the grille and the bumper (3).
8. Remove the return hose routing clips (1) at the body.
9. Remove the return hose (2) from the vehicle.
