PRESSURE HOSE




1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Remove the air box assembly (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL)..
3. Remove the pressure hose (2) at the pump.


4. Move the coolant bottle to the side out of the way.

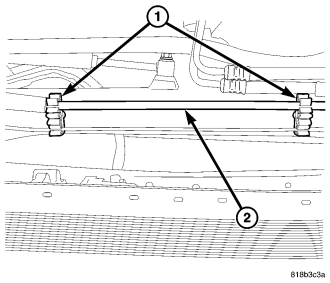

5. Remove the pressure hose (2) at the gear.


6. Remove the pressure hose from the routing clips (1).
7. Remove the pressure hose (2) from the vehicle.
