3.8L

1. Install pulley (1) on pump (if removed). (Refer to 19 - STEERING/PUMP/PULLEY - INSTALLATION).
2. Install pump on the engine.

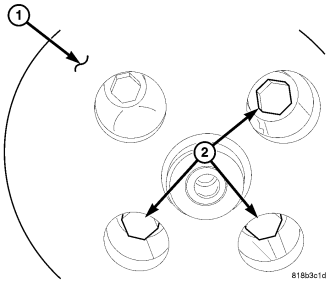

3. Install 3 pump mounting bolts (2) and tighten to 26 Nm (19 ft. lbs.).

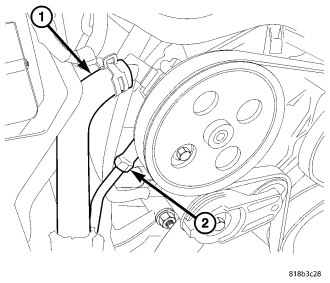

4. Install the pressure line on the pump and tighten to 31 Nm (23 ft. lbs.).
5. Install supply hose on pump.
6. Install drive belt, (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
7. Fill and bleed the power steering system (Refer to 19 - STEERING - STANDARD PROCEDURE).
8. Check for leaks.
9. Install the air box assembly (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION).
