TIE ROD END

1. Thread the tie rod end in the tube.

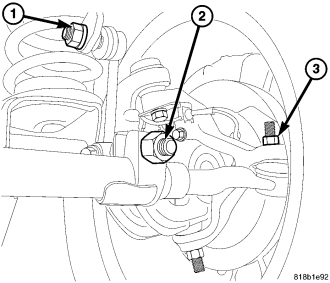

2. Install the tie rod in the steering knuckle.
3. Tighten the ball stud nut (3) on the steering knuckle to 85 Nm (63 ft. lbs.).
4. Position the tie rod clamp (2) and tighten to 61 Nm (45 ft. lbs.).
5. Install the tire and wheel assembly.
6. Lower the vehicle.
7. Set wheel toe, (Refer to 2 - SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
