REMOVAL

1. Raise and support the vehicle.

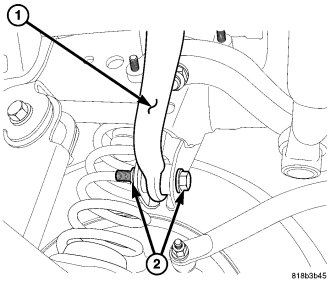

2. Remove the track bar bolt (2) at the frame and lower the track bar (1).

3. Remove the pitman arm nut at the drag link (3).

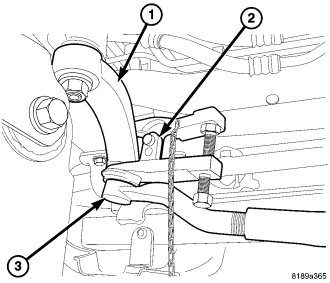

4. Separate the pitman arm (1) from the drag link (3) using special tool 9360 separator (2).

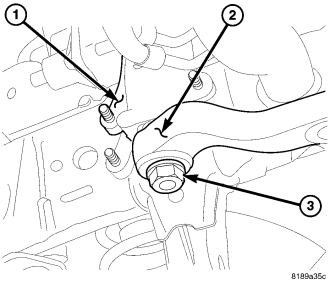

5. Remove the pitman arm nut (3).Mark the pitman shaft and pitman arm for installation reference.

6. Separate the pitman arm (2) from the gear using special tool 9615 puller (1).
7. Remove pitman (2) arm from gear. (Refer to 19 - STEERING/LINKAGE/PITMAN ARM - REMOVAL).
