INSTALLATION

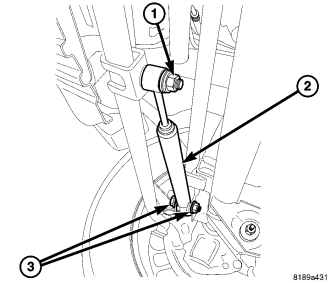

1. Install the steering damper (2) to the axle bracket and tie rod.
2. Install the steering damper bolt (3) in the axle bracket and tighten nut to 68 Nm (50 ft. lbs.).
3. Install the steering damper bolt (3) in the tie rod tube (1) and tighten nut to 68 Nm (50 ft. lbs.).
4. Remove the support and lower the vehicle.
