Frame dimensions are listed in metric scale. All dimensions are from center to center of Principle Locating Point (PLP), or from center to center of PLP and fastener location.
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
|
DESCRIPTION |
FIGURE |
|
PLAN VIEW - TWO DOOR JK ONLY |
PLAN VIEW - TWO DOOR JK ONLY
|
|
SIDE VIEW - TWO DOOR JK ONLY |
SIDE VIEW - TWO DOOR JK ONLY
|
|

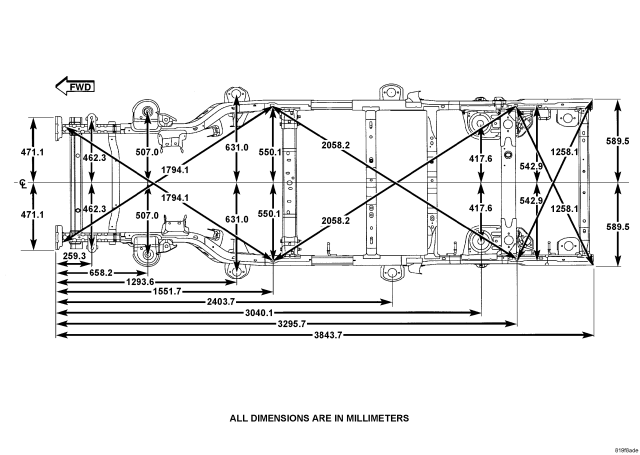

PLAN VIEW - FOUR DOOR JK ONLY |
PLAN VIEW - FOUR DOOR JK ONLY
|
|

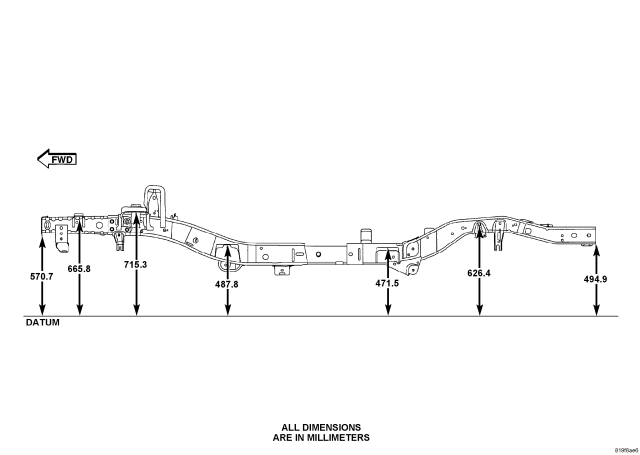

SIDE VIEW - FOUR DOOR JK ONLY |
SIDE VIEW - FOUR DOOR JK ONLY
|
| PLAN VIEW - TWO DOOR JK ONLY |
| SIDE VIEW - TWO DOOR JK ONLY |
| PLAN VIEW - FOUR DOOR JK ONLY |
| SIDE VIEW - FOUR DOOR JK ONLY |
