REMOVAL

1.
Raise and support the vehicle.
2.

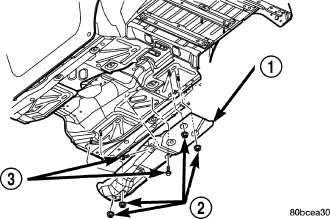

Remove the screws or nuts holding the heat shields to the frame or floor pan.

3.

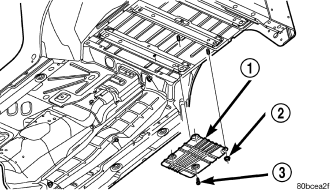

When removing muffler heat shield, the muffler front support bracket must be removed first.
4.
Slide the shields out around the exhaust system.
