REMOVAL
1.
Disconnect negative cable from battery.
2.
Remove accessory drive belt.
(Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
3.
Remove crankshaft damper.
(Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL)
4.

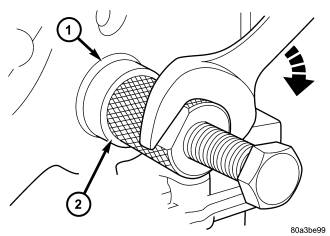

Position Special Tool 6341A on crankshaft nose. Carefully screw the tool into the seal until it engages firmly . Be careful not to damage that crankshaft
seal surface of cover
5.

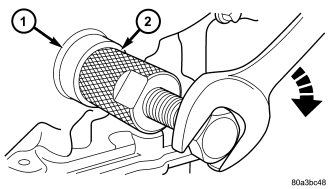

Remove oil seal by turning the forcing screw until the seal disengages from the cover .
