INSTALLATION

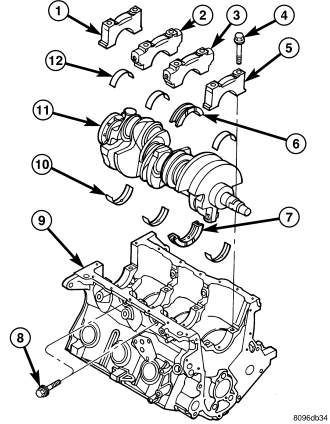

1. Lubricate with engine oil and install the crankshaft main bearing halves in the engine block.
2. Position the crankshaft in engine block .
3. Perform main bearing fitting procedure (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT MAIN BEARINGS - STANDARD PROCEDURE).
4. Inspect main cap bolts for stretching . Replace bolts that are stretched.

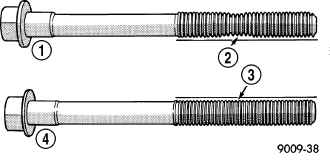

NOTE: The main cap bolts should be examined before reuse. Bolt stretch can be checked by holding a scale or straight edge against the threads. If all the threads do not contact the scale the bolt must be replaced .


5. Install the main bearing caps and bolts. Tighten bolts to 41 Nm (30 ft. lbs.) plus and a quarter turn.

NOTE: Install new cross bolt and washer assembly upon reassembly.


6. Install and tighten the NEW cross bolts and washer assemblies to 61 Nm (45 ft. lbs.) .
7. Position and install the connecting rod and bearing caps on the crankshaft (Refer to 9 - ENGINE/ENGINE BLOCK/CONNECTING ROD BEARINGS - STANDARD PROCEDURE).
8. Install the crankshaft rear oil seal (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR - INSTALLATION).
9. Install the crankshaft sprocket (Refer to 9 - ENGINE/VALVE TIMING/TIMING CHAIN AND SPROCKETS - INSTALLATION).
10. Install the timing chain and camshaft sprocket (Refer to 9 - ENGINE/VALVE TIMING/TIMING CHAIN AND SPROCKETS - INSTALLATION).
11. Install the timing chain cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING CHAIN COVER - INSTALLATION).
12. Install the oil pick-up tube and oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).
13. Install the engine assembly (Refer to 9 - ENGINE - INSTALLATION).
