INSTALLATION

1. Lubricate the lifters with engine oil.

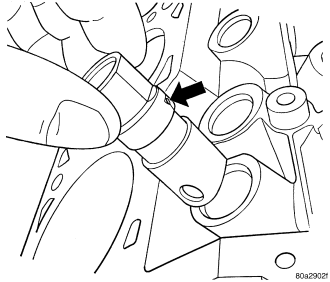

NOTE: Position the lifter in bore with the lubrication hole facing upward .

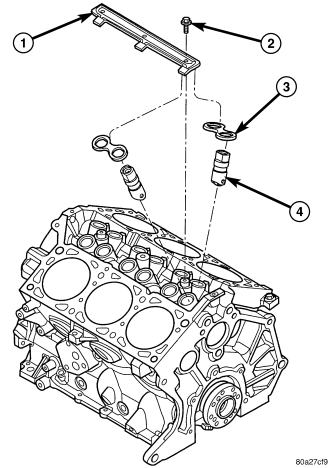

2. Install the hydraulic lifters with the lubrication hole facing upward towards middle of block . Install lifters in original positions, if reused.

3. Install lifter aligning yokes .
4. Install yoke retainer and torque screws to 12 Nm (105 in. lbs.) .
5. Install the cylinder heads. (Refer to 9 - ENGINE/CYLINDER HEAD - INSTALLATION)
6. Start and operate engine. Warm up to normal operating temperature.

CAUTION: To prevent damage to valve mechanism, engine must not be run above fast idle until all hydraulic lifters have filled with oil and have become quiet.
