P1273-A/C CLUTCH CONTROL CIRCUIT 2 HIGH (TIPM)





For a complete wiring diagram Refer to Section 8W.



Possible Causes
(C3) A/C CLUTCH CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE
EXCESSIVE RESISTANCE IN THE (Z906) A/C CLUTCH GROUND CIRCUIT
A/C COMPRESSOR CLUTCH
TIPM


Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).



Diagnostic Test

1. A/C CLUTCH OPERATION

Ignition on, engine not running.
With a scan tool under the PCM Actuators, actuate the A/C Clutch.

Is the A/C Clutch actuating?

Yes


No

2. A/C CLUTCH CONTROL OPERATION FROM THE PCM



Turn the ignition off.
Disconnect the C1 TIPM harness connector.
Ignition on, engine not running.
Using the scan tool under the PCM Actuators, actuate the A/C Clutch.
With a 12-volt test light connected to ground, probe the (C13) A/C Clutch Control circuit in the C1 TIPM harness connector.

Does the test light illuminate brightly and flash on and off?

Yes


No

3. (C3) A/C CLUTCH CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE



Turn the ignition off.
Disconnect the A/C Compressor Clutch harness connector.
Ignition on, engine not running.

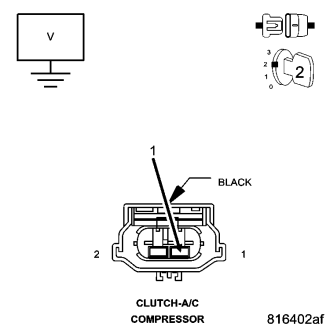

Measure the voltage on the (C3) A/C Clutch Control Output circuit at the A/C Compressor Clutch harness connector.

Is any voltage present?

Yes


No

4. A/C CLUTCH GROUND CIRCUIT OPEN



Turn the ignition off.
Connect the C1 TIPM harness connector.

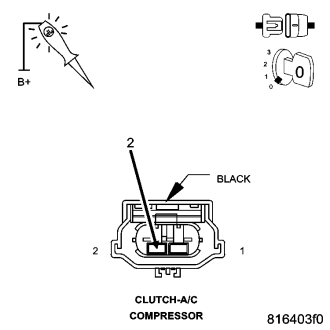

Using a 12-volt test light connected to 12-volts, probe the (Z906) A/C Clutch ground circuit at the A/C Compressor Clutch harness connector.

Does the test light illuminate brightly?

Yes


No

5. A/C COMPRESSOR CLUTCH



Ignition on, engine not running.
Using the scan tool under the TIPM Actuators, actuate the A/C Clutch.

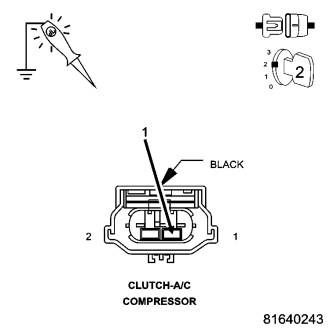

With a 12-volt test light connected to ground, probe the (C3) A/C Clutch Control Output circuit at the A/C Compressor Clutch harness connector.

Does the test light illuminate brightly and flash on and off?

Yes


No

6. TOTALLY INTEGRATED POWER MODULE

NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.


Using the schematics as a guide, inspect the wire harness and connectors.
Pay particular attention to all Power and Ground circuits.

Were any problems found?

Yes


No
