P0303-CYLINDER 3 MISFIRE

For a complete wiring diagram Refer to Section 8W.



Possible Causes
(F342) ASD RELAY OUTPUT CIRCUIT
(K13) INJECTOR 3 CONTROL CIRCUIT
(K18) COIL CONTROL 3 CIRCUIT
IGNITION WIRE
SPARK PLUG
IGNITION COIL
FUEL PUMP INLET STRAINER PLUGGED
RESTRICTED FUEL SUPPLY LINE
FUEL PUMP MODULE
FUEL PRESSURE LEAK DOWN
FUEL INJECTOR
ENGINE MECHANICAL
PCM


Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).



Diagnostic Test

1. CYLINDER MISFIRE CONDITION ACTIVE

Engine running.
Observe the WHICH CYLINDER IS MISFIRING screen for at least one minute with the scan tool.

Is there a misfire present at this time?

Yes


No

2. VISUAL INSPECTION

NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC.

NOTE: When a Misfire is detected for a particular cylinder, the PCM will shut down that cylinder's Injector Control circuit.


- Visually inspect the engine for any of the following conditions.
- Worn serpentine belt
- Binding Engine-Driven accessories: A/C Compressor, P/S Pump, Water pump.
- Misalignment of the Water pump, P/S Pump and A/C Compressor pulleys.
- Corroded PCM power and ground circuits.
- Improper CKP, CMP, MAP, and TP Sensor mounting
- Poor connector/terminal to component connection. i.e., CKP sensor, Fuel Injector, Ignition coil, etc.
- Vacuum leaks
- Restricted Air Induction system or Exhaust system.
- Internal engine component failures.

Were any of the above conditions present?

Yes


No

3. (F342) ASD RELAY OUTPUT CIRCUIT





Turn the ignition off.
Disconnect the Ignition Coil harness connector.
Disconnect the No.3 Fuel Injector harness connector.
Ignition on, engine not running.
With a scan tool, actuate the ASD Relay.

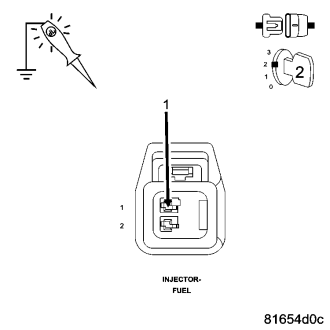

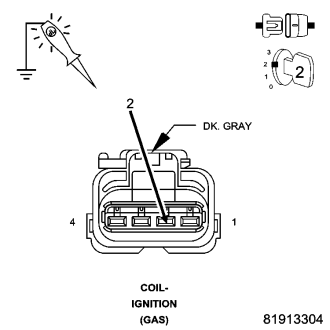

Using a 12-volt test light connected to ground, probe the (F342) ASD Relay Output circuit in the Ignition Coil harness connector and Fuel Injector harness connector while the ASD Relay is actuating.

Does the test light illuminate brightly?

Yes


No

4. IGNITION SYSTEM OPERATION

Turn the ignition off.
Connect the Ignition coil harness connector.
Remove the Ignition wire from the Cylinder 3 Spark Plug.
Leave the Fuel Injector harness connector of the cylinder being tested disconnected.
Install a spark tester on the Ignition wire.
While cranking the engine observe the spark coming from the spark tester.

NOTE: A crisp blue spark that is able to jump the gap of the spark tester should be generated.



Is good spark present?

Yes


No

5. SPARK PLUG

Turn the ignition off.
Remove the Spark Plug.
Inspect the Spark Plug for the following conditions.
- Cracks
- Carbon Tracking
- Foreign Material
- Gap size out of specifications
- Loose or broken electrode

NOTE: Lightly tap the bottom of the spark plug on a solid surface. The electrode in the spark plug should not move.



Were any of the above conditions present?

Yes


No

6. FUEL PRESSURE CHECK

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death.


Install a fuel pressure gauge to the fuel rail.
Start the engine and observe the fuel pressure reading.

NOTE: Fuel pressure specification is 407 kPa +/- 34 kPa (59 psi +/- 5 psi).



Choose a conclusion that best matches your fuel pressure reading.

Within Specification


Below Specification


Above Specification

7. FUEL PRESSURE LEAK DOWN

NOTE: Before continuing visually and physically inspect the fuel delivery system for external leaks or damage. Repair/replace as necessary.

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death


Turn the ignition off.
Install special tool #6539 (5/16") or #6631 (3/8") fuel line adapter.
Install the fuel pressure gauge.
Start the engine and allow the fuel system to reach maximum pressure.
Turn the ignition off.

NOTE: Fuel specification is 407 kPa +/- 34 kPa (59 psi +/- 5 psi).


Using special tool #C4390, Hose Clamp Pliers, pinch the rubber fuel line between the fuel pressure gauge and the engine.
Monitor the fuel pressure gauge for a minimum of 5 minutes.

NOTE: The pressure should not fall below 241 kPa (35 psi).



Does the pressure fall below the listed specification?

Yes


No

8. FUEL INJECTOR OPERATION

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death.

CAUTION: After each Fuel Injector actuation, start the engine to clean the cylinder of fuel. Failure to do so could cause engine damage.


Remove special tool #C4390.
Start the engine and allow the fuel pressure to reach maximum pressure.
Ignition on, engine not running.
Using a scan tool, actuate the No.3 Fuel Injector.
Monitor the fuel pressure gauge.

Does the fuel pressure gauge indicate a drop in fuel pressure?

Yes


No

9. ENGINE MECHANICAL

Check for any of the following conditions/mechanical problems.
ENGINE VACUUM - must be at least 13 inches in neutral
ENGINE VALVE TIMING - must be within specifications
ENGINE COMPRESSION - must be within specifications
ENGINE EXHAUST SYSTEM - must be free of any restrictions or leaks.
ENGINE PCV SYSTEM - must flow freely
TORQUE CONVERTER STALL SPEED - must be within specifications
POWER BRAKE BOOSTER - no internal vacuum leaks
FUEL - must be free of contamination
CAM LOBES - must not be worn excessively
CYLINDER LEAKAGE TEST - must be within specifications
VALVE SPRINGS - cannot be weak or broken

Are there any engine mechanical problems?

Yes


No

10. FUEL INJECTOR

Turn the ignition off.
Disconnect the No.3 Fuel Injector harness connector.
Ignition on, engine not running.

NOTE: When a Misfire is detected for a particular cylinder, the PCM will shut down that cylinder's Injector Control circuit.


With the scan tool, erase DTCs.
Install an Injector Noid light.
With the scan tool, actuate the Fuel Injector.

Does the Noid light blink/flicker during the actuation?

Yes


No

11. (K13) INJECTOR 3 CONTROL CIRCUIT



Turn the ignition off.
Disconnect the C2 PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

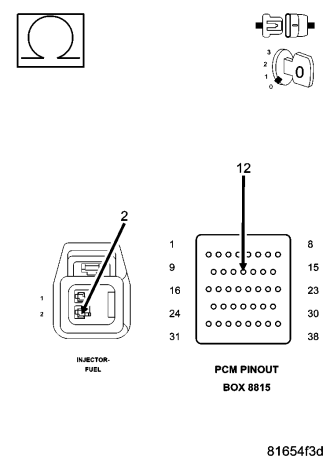

Check the (K13) Injector 3 Control circuit for an open, short to ground, and short to voltage.

Was a problem found with the (K13) Injector 3 Control circuit?

Yes


No

12. FUEL SUPPLY LINE RESTRICTED

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death.


Turn the ignition off.
Raise vehicle on hoist, and disconnect the fuel pressure line at the fuel pump module.
Install special tool #6539 (5/16") #6631(3/8") fuel line adapter and the fuel pressure gauge between the fuel supply line and the fuel pump module.
Ignition on, engine not running.
With a scan tool, actuate the ASD Fuel System test and observe the fuel pressure gauge.

NOTE: Fuel pressure specification is 407 kPa +/- 34 kPa (59 psi +/- 5 psi).



Is the fuel pressure within specification?

Yes


No

13. FUEL PUMP INLET STRAINER

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death.


Turn the ignition off.
Remove the Fuel Pump Module and inspect the Fuel Inlet Strainer.

Is the Fuel Inlet Strainer plugged?

Yes


No

14. IGNITION WIRE

Disconnect the Cylinder 3 Ignition wire from the Ignition Coil and Spark Plug.

NOTE: Inspect both ends of the Ignition Wire and the terminals on the Spark Plug and Ignition Coil for excessive corrosion. Clean/Repair as necessary.


Measure the resistance of the Cylinder 3 Ignition wire.

Is the resistance above 19.3K ohms?

Yes


No

15. IGNITION COIL


WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.


Disconnect the No.3 Ignition Coil harness connector.
Using a 12-volt test light connected to 12-volts, probe the (K18) Coil Control 3 circuit.

NOTE: Make sure the test light is probing the circuit before actuating the Coil or a DTC may set and not allow the actuation.


Crank the engine for 5 seconds while observing the test light.

Does the test light brightly blink/flicker while the engine is cranking?

Yes


No

16. (K18) COIL CONTROL 3 CIRCUIT



Turn the ignition off.
Disconnect the C2 PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

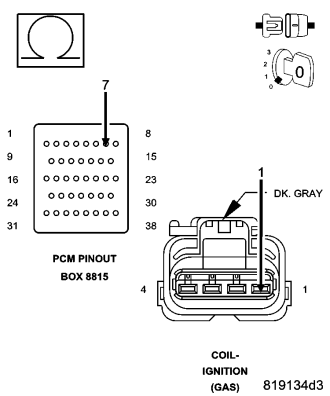

Check the (K18) Coil Control 3 circuit for an open, short to ground, and short to voltage.

Was a problem found with the (K18) Coil Control 3 circuit?

Yes


No

17. PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.


Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes


No
