START INTERLOCK TEST - DIESEL AND GAS

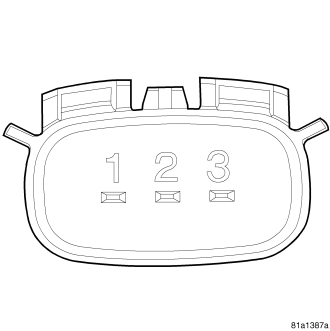

Ohm meter set on continuity: One lead on switch START INTERLOCK post 2 and second lead on COMMON post 3.

• Pedal Released - No Continuity
• Pedal Depressed End Of Stroke - Continuity

CRUISE TEST - DIESEL ONLY

Ohm meter set on continuity: One lead on switch CRUISE post 1 and second lead on COMMON post 3.

• Pedal Released - Continuity
• Pedal Depressed Beginning Of Stroke - No Continuity
