C121A-STEERING ANGLE SENSOR NOT INITIALIZED

For a complete wiring diagram Refer to Section 8W.



Possible Causes
TERMINAL/CONNECTOR/WIRING HARNESS DAMAGE
(F943) FUSED B(+) CIRCUIT OPEN
(Z385) GROUND CIRCUIT OPEN
STEERING CONTROL MODULE




Diagnostic Test

1. CHECK FOR A DTC C121A-STEERING ANGLE SENSOR NOT INITIALIZED

NOTE: This DTC must be active for the results of this test to be valid.


Turn the ignition on.
With the scan tool, read and record DTCs.
With the scan tool, read and record Freeze Frame information.
With the scan tool, erase DTCs.
Road test the vehicle over 30 km/h (19 mph) for at least 30 seconds.
With the scan tool, read and record DTCs.

Does the scan tool display: C121A-STEERING ANGLE SENSOR NOT INITIALIZED?

Yes


No

2. CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS FOR DAMAGE

Check the Steering Angle Sensor installation.
Check all related wiring for bruised, chafed, pierced, or partially broken wires.
Check all related connectors for broken, bent, pushed out, or corroded terminals.

Were any problems found?

Yes


No

3. CHECK THE VOLTAGE ON THE (F943) FUSED B(+) CIRCUIT



Turn the ignition off.
Disconnect the Steering Control Module harness connector.
Turn the ignition on.

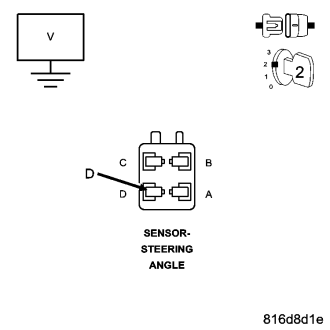

Measure the voltage of the (F943) Fused B(+) circuit.

Is the voltage above 10 volts?

Yes


No

4. CHECK THE RESISTANCE OF THE (Z385) GROUND CIRCUIT



Turn the ignition off.
Disconnect the Steering Control Module harness connector.

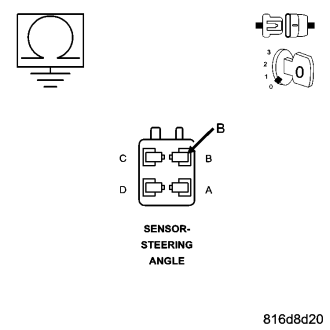

Measure the resistance between the (Z385) Ground circuit and ground.

Is the resistance below 5.0 ohms?

Yes


No
