REMOVAL
1.
Install prop rod on brake pedal to keep pressure on the brake system.
2.
Remove reservoir cap and siphon fluid into drain container.
3.
Remove the electrical connector (3) from the fluid level switch in the reservoir (2).
4.

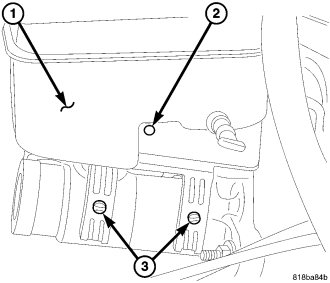

Remove the reservoir (1) from the master cylinder by pulling the four tabs (3) outward to release.
5.
Remove the reservoir (1) from the master cylinder by pulling upwards.
6.

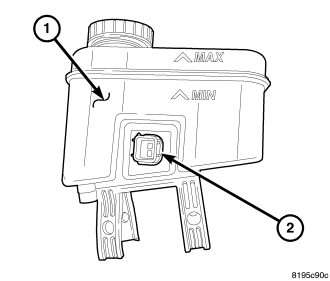

If replacing the reservoir (1) remove the fluid level sensor (2) by squeezing the tabs together while pulling on the sensor (2).
7.

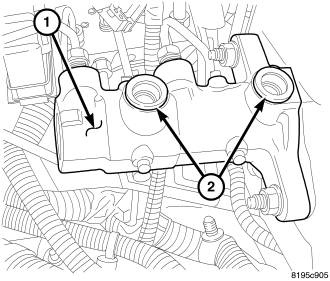

Remove old grommets (2) from cylinder body (1).
