REAR

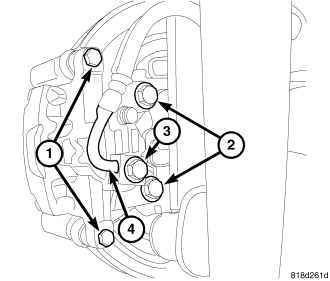

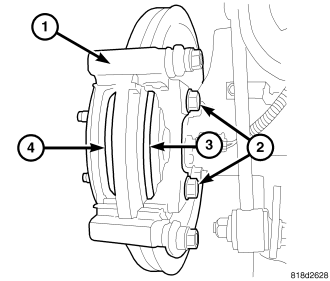

1. Install the caliper adapter mounting bolts (2). Tighten the mounting bolts to 75 Nm (55 ft.lbs).
2. Install the inboard (3) and outboard pads (3).
(Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES - INSTALLATION).


3. Install the caliper (1)
(Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION).
4. Install the tire and wheel assembly. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
