INSTALLATION

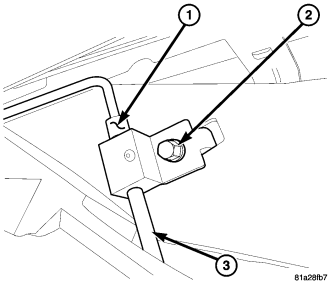

1. Install the brake hose (3) to the mounting hole at the frame and install the mounting bolt (2).
2. Install the brake line tube nut (1) to the brake hose (3) and tighten to 23 Nm (200 in. lbs.) torque.

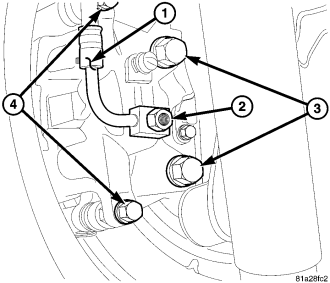

3. Install banjo bolt (2) attaching brake hose (1) to caliper. Install NEW washers on each side of hose fitting as banjo bolt is placed through banjo fitting. Thread banjo bolt into caliper and tighten to 31 Nm (23 ft. lbs.) torque.
4. Lower vehicle.
5. Remove brake pedal holding tool.
6. Bleed base brake hydraulic system as necessary. (Refer to 5 - BRAKES - STANDARD PROCEDURE)
