INSTALLATION

1. Install the hose (3).
2. Install the mounting bolt (2) for the brake hose at the frame.
3. Install the brake line (1) to the brake hose (3).

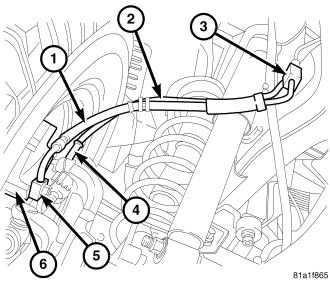

4. Reinstall the wheel speed sensor wire (2) to the brake hose (1).
5. Install the brake hose banjo bolt (5) at the caliper (6). Tighten to 28 Nm (250 in. lbs.)
6. Remove the support and lower the vehicle.
7. Bleed the brake system (Refer to 5 - BRAKES - STANDARD PROCEDURE).
