INSTALLATION
1.
Install the track bar (1) to the vehicle.
NOTE:
Frame bolt must be installed from the front to the rear of the vehicle.
2.

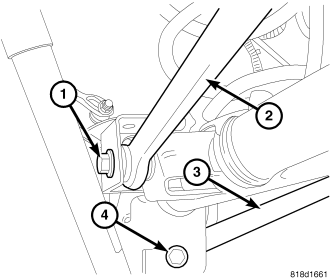

Install the track bar bolt and flagnut (2) in the frame bracket.
3.
Install the track bar (2) into the axle bracket.
4.
Install the track bar bolt and flagnut (1) in the axle bracket.
5.
Remove the supports and lower the vehicle.
6.
Tighten the frame and axle mounting bolt/nut to 169 Nm (125 ft. lbs.) with full vehicle weight.
