INSTALLATION
1.

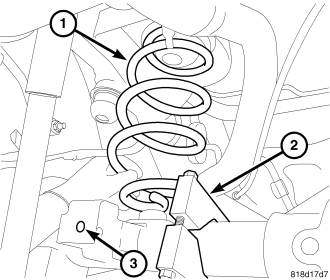

Position the coil spring (1) on the axle pad isolator.
2.
Raise the axle into position until the spring seats on the upper isolator.
3.
Connect the stabilizer bar links to the axle bracket (3).
(Refer to 2 - SUSPENSION/REAR/STABILIZER LINK - INSTALLATION).
4.
Connect the shock absorbers to the axle bracket (2).
(Refer to 2 - SUSPENSION/REAR/SHOCK - INSTALLATION).
5.
Connect the track bar to the frame axle bracket (3).
(Refer to 2 - SUSPENSION/REAR/TRACK BAR - INSTALLATION).
6.
Remove the supports (2) and lower the vehicle.
