INSTALLATION

NOTE:
Stabilizer bar link to axle bolt should be tightened with vehicle sitting on its tires
1.

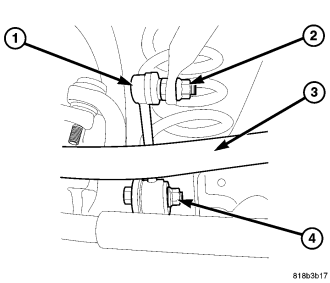

Install the stabilizer link (1) to the vehicle.
2.
Install the right lower stabilizer bar link bolt (4) to the axle. Tighten to 102 Nm (75 ft. lbs.).
3.
Install the right upper stabilizer bar link nut (2) to the stabilizer bar. Tighten to 102 Nm (75 ft. lbs.).

4.
Install the left lower stabilizer bar link bolt (4) to the axle. Tighten to 102 Nm (75 ft. lbs.).
5.
Install the left upper stabilizer bar link nut (1) to the stabilizer bar. Tighten to 102 Nm (75 ft. lbs.).
6.
Remove the support and lower the vehicle.
