REMOVAL

1. Raise and support the vehicle.
2. Remove the inner fender well.

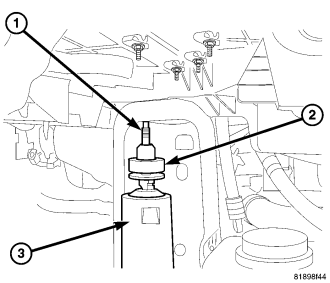

3. Remove the nut, retainer and grommet (2) from the upper stud (1).

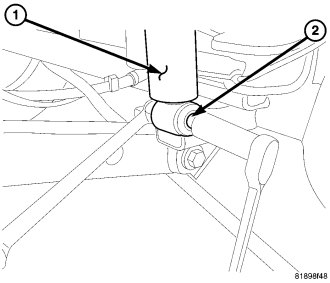

4. Remove the lower nut and bolt (2) from the axle bracket and remove the shock absorber (1).
