INSTALLATION

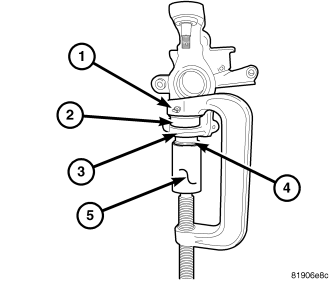

1. Position special tool 9950 (DRIVER) (5) and 6289–12 (RECEIVER) (2) with C4212–F (PRESS) (1) as shown to install lower ball stud (4).
2. Install the axle shaft into the axle (Refer to 3 - DIFFERENTIAL & DRIVELINE/FRONT AXLE - 216FBI/AXLE SHAFTS - INSTALLATION).
3. Install the hub/bearing (Refer to 2 - SUSPENSION/FRONT/HUB / BEARING - INSTALLATION).
4. Install the steering knuckle (Refer to 2 - SUSPENSION/FRONT/KNUCKLE - INSTALLATION).
