The valve body assembly consists of a cast aluminum valve body (5),separator plate (4), and transfer plate (3). The valve body contains valves and check balls that control fluid delivery to the torque converter clutch, solenoid/pressure switch assembly, and frictional clutches.
Also mounted to the valve body assembly are the solenoid/pressure switch assembly and the transmission range sensor (2).

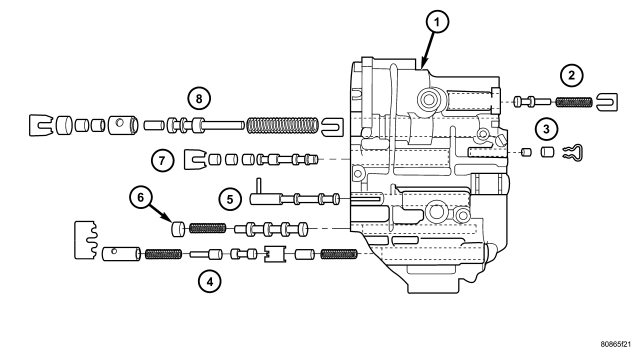

The valves contained within the valve body (1) include the following :
In addition, the valve body also contains the thermal valve, #2, 3, 4 & 5 check balls and the 2/4 accumulator assembly.
