DISASSEMBLY


1. Remove brake shoes from caliper.
2. Drain brake fluid out of caliper.

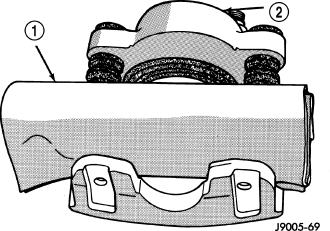

3. Take a piece of wood and pad it with one-inch thickness of shop towels. Place this piece in the outboard shoe side of the caliper in front of the piston. This will cushion and protect caliper piston during removal .

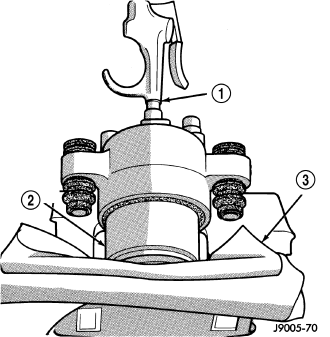

4. Remove caliper piston with short bursts of low pressure compressed air. Direct air through fluid inlet port and ease piston out of bore .

CAUTION: Do not blow the piston out of the bore with sustained air pressure. This could result in a cracked piston. Use only enough air pressure to ease the piston out.

WARNING: NEVER ATTEMPT TO CATCH THE PISTON AS IT LEAVES THE BORE. THIS MAY RESULT IN PERSONAL INJURY.

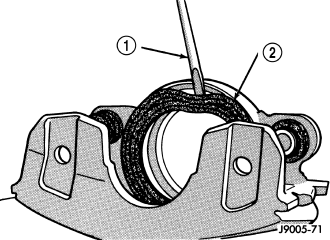

5. Remove caliper piston dust boot with suitable pry tool .

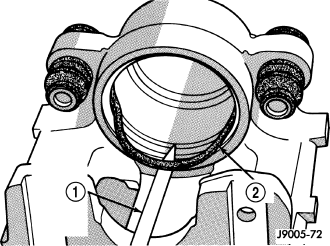

6. Remove caliper piston seal with wood or plastic tool . Do not use metal tools as they will scratch piston bore.

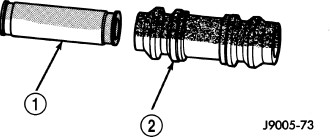

7. Remove caliper mounting bolt bushings and boots .
