REMOVAL

1. Disconnect battery.

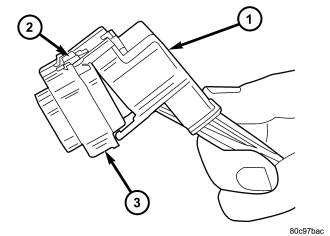

2. Release Connector Lock (2).
3. Disconnect the connector (3) being repaired from its mating half/component.

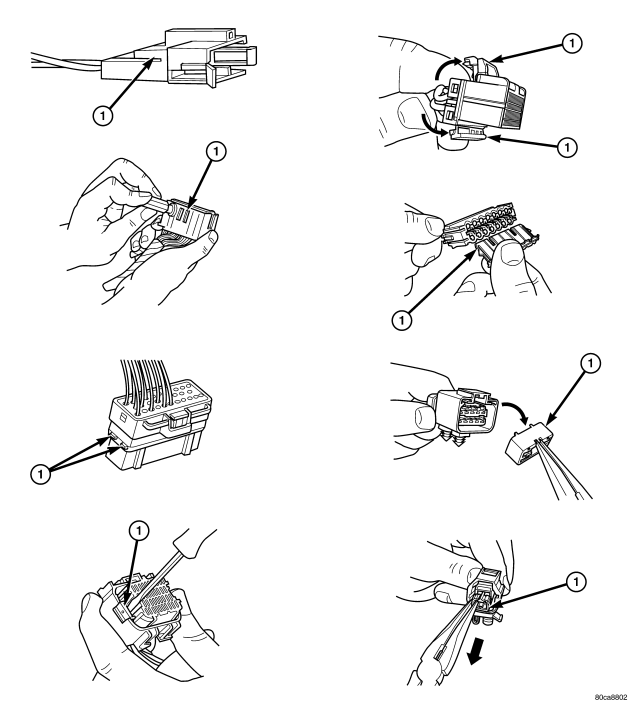

4. Remove the dress cover (if applicable) (1).

5. Release the Secondary Terminal Lock, if required (1).

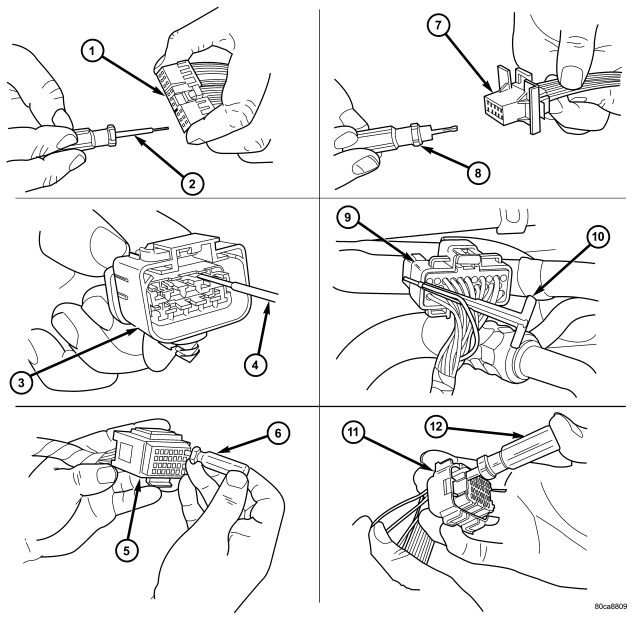

1 - TYPICAL CONNECTOR

2 - PICK FROM SPECIAL TOOL KIT 6680

3 - APEX CONNECTOR

4 - PICK FROM SPECIAL TOOL KIT 6680

5 - AUGAT CONNECTOR

6 - SPECIAL TOOL 6932

7 - MOLEX CONNECTOR

8 - SPECIAL TOOL 6742

9 - THOMAS AND BETTS CONNECTOR

10 - SPECIAL TOOL 6934

11 - TYCO CONNECTOR

12 - SPECIAL TOOL 8638

6. Position the connector locking finger away from the terminal using the proper special tool. Pull on the wire to remove the terminal from the connector .
