Topics Covered

  • forward Command Block

    • Lesson Links

    ... ...
    Check Your Understanding:
    1. 1. To add a command to the program, you...
      2. Drag a command block from the list on the left to the program on the right
      Type the command into the blanks
      Select "Add Command" from the "Programs" menu
      Speak the command, "Add Program Block" into the computer's microphone
    2. 2. What do the first two boxes on the Forward command block control?
      3. Direction of the robot's movement
      How fast the robot moves
      How far the robot moves
      Which motors to turn on
    3. 3. What does the final box on the Forward command block control?
      4. The Distance of the Forward movement
      The Duration of the Forward movement
      The Speed of the Forward movement
      Which motors to turn on
    Try It!
    Try it! 1

    Backward Command

    What happens when you use a Backward command in your program
    instead of a Forward command?

    Click one of the "MoveBackwards" RBG links to the right,
    and write a program using a Backward command instead. Try it!
    Virtual Robot MoveBackwardsVR.rbg Physical Robot MoveBackwards.rbg

    What happens?
    The backward command makes the robot move backward instead of forward, using the exact same command details as the forward movement.
    Try it! 2

    Timing-based Movement

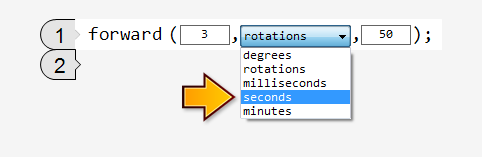

    What happens if you choose "Seconds" as the unit in a Forward movement command? Try it!
    Virtual Robot TimedMovementVR.rbg Physical Robot TimedMovement.rbg

    What happens?
    Instead of moving forward for exactly 3 wheel rotations, the robot moves forward for 3 seconds.
    Try it! 3

    Speed Control

    What does the third blank in the Forward command control?

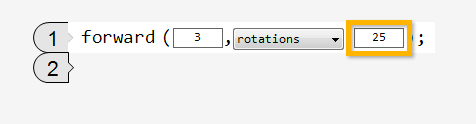

    Change the value in the third blank from 50 to 25, then download and run your program again. What changes? Try it!
    Virtual Robot SpeedControlVR.rbg Physical Robot SpeedControl.rbg

    What happens?
    The robot's speed decreases from 50% to 25%, so it moves more slowly..
