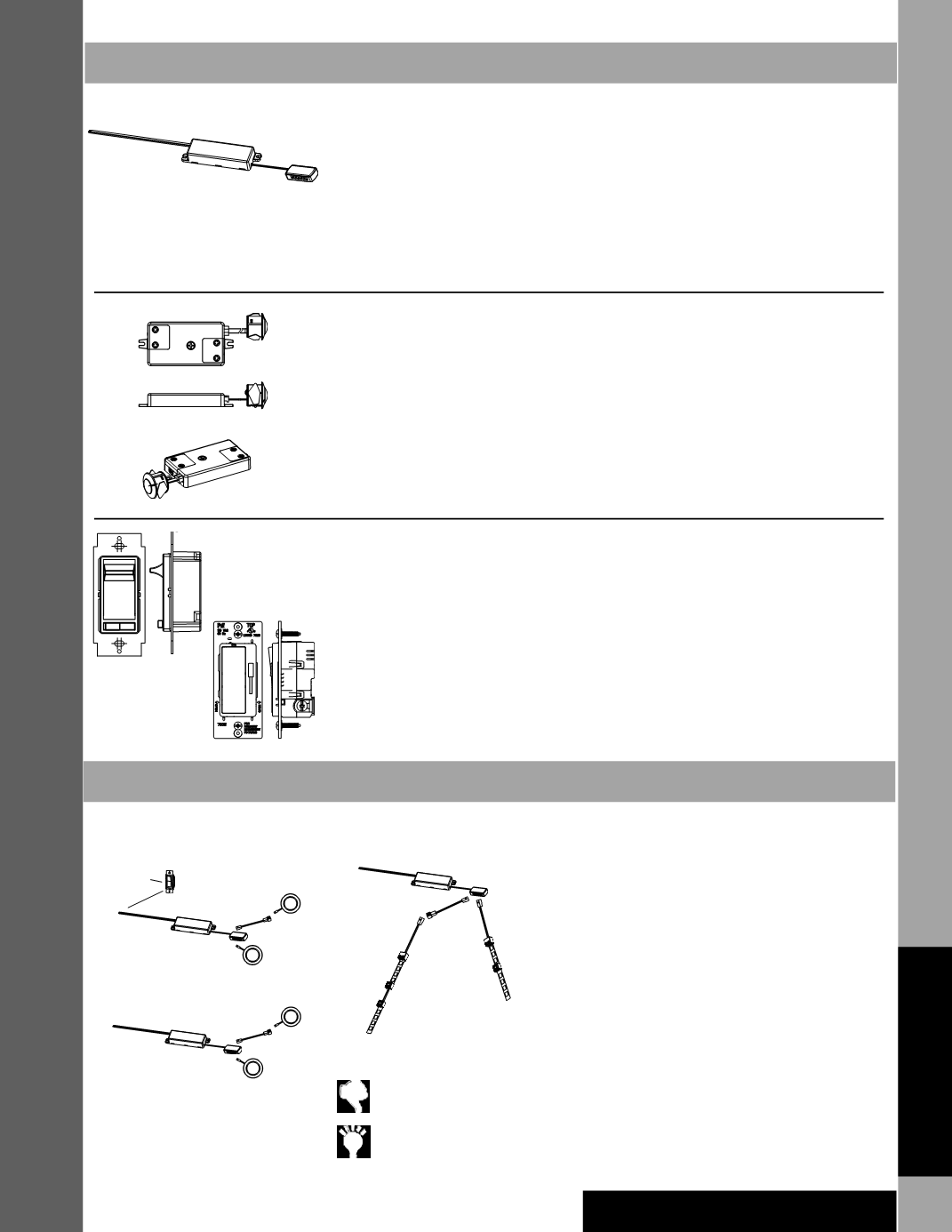

DayBreak Dimmable Driver - LED Power Supply
18 Watts
LED•DDR18
72 Watts
LED•DDR72
• 24V DC; 18W, 12 port connector block can be used for
up to 18 total watts of lighting
• 24V DC; 72W, 12 port connector block can be used for
up to 72 total watts of lighting
• Requires electrical outlet or junction box to connect to
power
• Converts 120V AC power to 24V DC power
• Can be used with most standard TRIAC wall dimmers
(ex. Lutron DVWCL-153PDH). Verify compatibility with
switch manufacturer’s specifications
• Comes with a 5’ long power cord and optional plug
head
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
Motion Sensor On/Off Switch - LED Switches
LED•MSS
• Medium range motion sensor ideal for interior cabinet
installation. Lights are activated by motion of opening
cabinet doors.
• Includes 12-port connector block
• One switch can be used to activate lighting for single or
double door cabinets
• Adjustable timer controls the length of time lights
remain on; up to 6 minutes
• 5’ long cable between sensor and controller
• The sensor eye
must
be recess mounted and requires a
20mm hole
Low Voltage LED Wall Dimmer Switch
LED•WDS•3W
LED•WDS•SP
• White, wall dimmer switch for single gang box
• Functions as both an on/off and dimmer switch
• Use LED•WDS•3W for rooms with multiple entrances
and switches
• Use LED•WDS•SP for rooms with a single entrance and
switch
• Faceplate
not
included. Purchase seperately to match
decor
•3W
•SP
• KraftMaid® products are designed to give you the ultimate
versatility in designing lighting solutions. The following
examples show the use of puck lighting and strip lighting,
along with the various accessories:
• The best power source for LED Lighting is called a driver.
The patented technology in your driver allows it to be used
as both a dimmable driver and a regular driver. The driver
is powered by standard AC line voltage of 120VAC. The
driver can be plugged into an outlet by using the plug head
included or can be hardwired into a junction box
• Puck lights attach to the driver in a “hub and spoke”
configuration. The driver has a 12-port connector block.
Each light comes equipped with a 98” power lead. Should
you require a longer power lead, use a power extension
cord
• Each run of strip lights attach to the driver in a “hub and
spoke” configuration. The driver has a 12-port connector
block. Each series of strips require the use of one power
cable. Should you require a longer power lead, use a power
extension cable.
• Connectors allow you to run more than one segment
of LED strip from a single power cable. The End to End
Connector joins smaller pieces of LED tape together to
form longer segments. For example, if you are installing
toe kick lighting, but need to skip past the refrigerator, use
the Connector Kit for Custom Wire Length. After wiring
around the refrigerator, you can continue your lighting on
the other side.
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
AC Power In
Driver
LED Puck
Extension
Cable
Wall Dimmer Switch
Puck Lighting with Dimming
Puck Lighting without Dimming
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
AC Power In
Driver
LED Puck
Extension
Cable
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
SPT-2VW-1
AC Power In
Driver
Extension Cable
Connector Block
Power Cable
Power Cable
End to End
Connector
Connector Kit for
Custom Wire Length
Strip Lighting without Dimming
LED Power Supply
LED Connection Options
Do
not
attach more lights than the
driver has wattage to support
For instructional information on
designing and installing lighting, visit
. The Lighting Wizard
is located under the Training tab.
