Vanity Cabinet Accessories
Vanity Cabinets

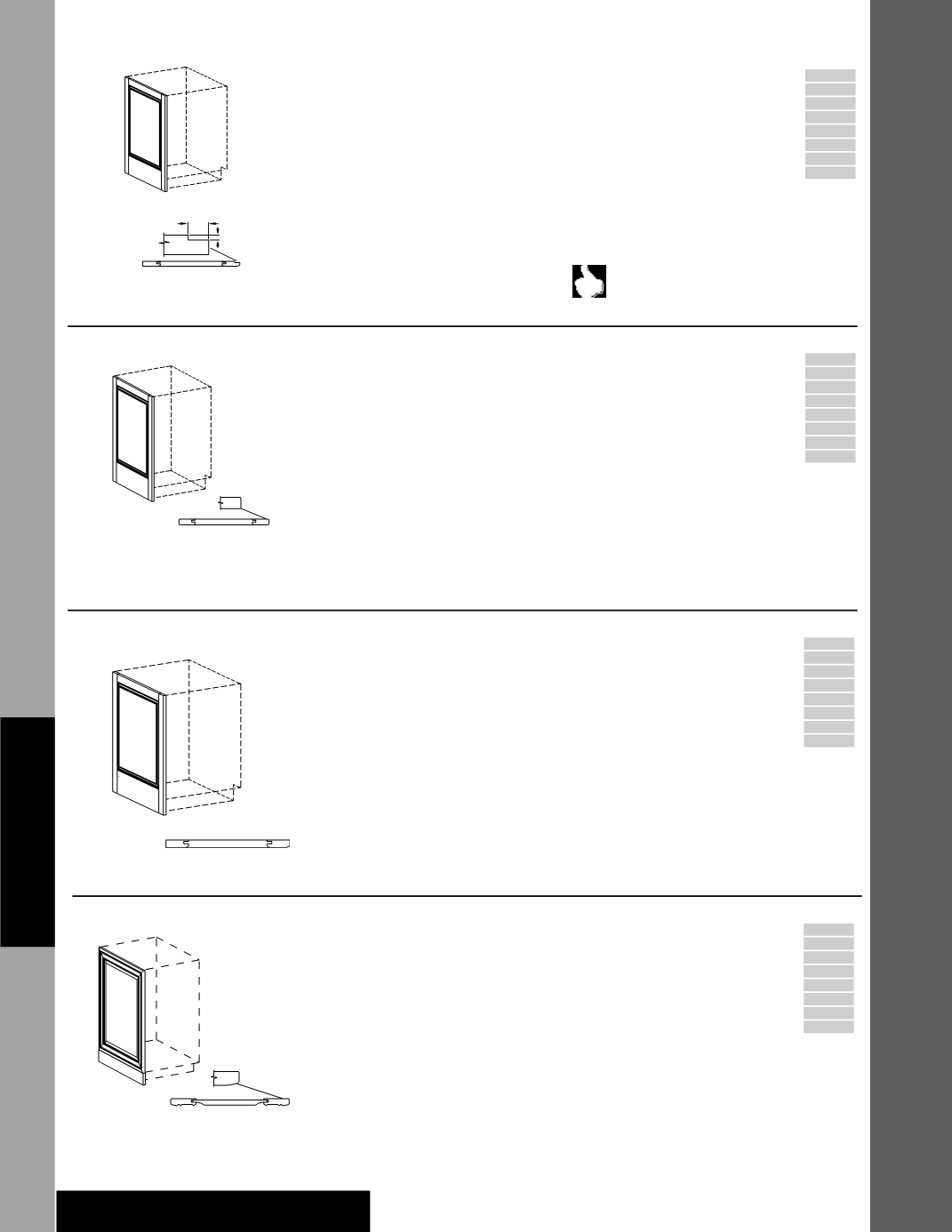

Matching Vanity End Panel
Specify R or L
MVEP1831 R or L
MVEP2131 R or L
MVEP1834 R or L
MVEP2134 R or L
• 3/4” thick panel with matching door edge
profile on front edge only
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Left shown
• Laminate and slab door styles do
not
have
grooves and will
not
fit flush against 1/2˝ end
panel. A 3/16˝ shim is recommended
•
Not
available in High-Gloss Laminate door
styles
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in Morrisbrook; Durham and Meredith
supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels
the reveal will differ from the cabinet door
height reveal. Matching End Panels cover the
entire side of the cabinet. See drawing for
exact measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
¾˝
Standard edge detail — fits flush against
1/2˝ end panel and behind face frame
17 / ˝, 20 /
31 ½˝
34 ½˝
/
Gray color coding indicates new product, size or code.
Matching Vanity End Panel–Square Edges
MVEP1831 •S
MVEP2131 •S
MVEP1834 •S
MVEP2134 •S
• 3/4˝ thick panel with square edge front and
back
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Reversible, may be used on either right or left
end
• No frame recess dado
• Field installation only
•
Not
available in High-Gloss Laminate, Laminate or
Woodgrain Laminate door styles
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in Morrisbrook; Durham and Meredith
supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
Will not fit flush
against 1/2˝ end panel,
a 3/16˝ shim is recommended
17 / ˝, 20 /
31 ½˝
34 ½˝
Gray color coding indicates new product, size or code.
Furniture Matching Vanity End Panel
Specify R or L
FMVEP1831 R or L
FMVEP2131 R or L
FMVEP1834 R or L
FMVEP2134 R or L
• 3/4” thick panel with matching door edge
profile on front edge only
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• For use with Furniture Plywood Ends
(FPEB)—flush ends
• Left shown
• Field installation only
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in High-Gloss Laminate or Woodgrain
Laminate door styles
•
Not
available in Morrisbrook; Durham and Meredith
supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
17 / ˝, 20 /
31 ½˝
34 ½˝
Gray color coding indicates new product, size or code.
Matching Vanity End Panel–Mitered
M•MVEP1831
M•MVEP2131
M•MVEP1834
M•MVEP2134
• 3/4” thick panel with matching door edge
profile on front edge only
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Available in mitered door styles only
• Reversible, may be used on either right or left
end
• Field installation only
• Toe kick shipped unattached
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
Will not fit flush against 1/2˝ end panel,
a 3/16˝ shim is recommended
17 / ˝, 20 /
31 ½˝
34 ½˝
Gray color coding indicates new product, size or code.
