Door & Drawer Fronts–How to use
N17
This guide allows you to choose from a complete line of
doors and drawer fronts for replacement as well as special
applications such as appliance fronts, whirlpool skirts,
wainscoting, etc.
This section is divided into two parts
I.
Part Index
This part lists all cabinets alphabetically by their
nomenclature and tells you the corresponding replace-
ment doors and drawer fronts used on that cabinet. Find
your door style in the index on the following pages to
determine the configuration to use.
II.
Sizes
This part lists all replacement doors and drawer
fronts by their nomenclature. They are sorted by their
nominal height (last two numbers of the nomenclature)
from largest to smallest.
To choose doors and drawer fronts for replacement, use
the Part Index section to look up the cabinet and deter-
mine which doors and drawer fronts are needed. Then
look up the door(s) and drawer front(s) in the Price List
catalog under the price column number appropriate to
your door style.
To choose doors and drawer fronts for special decorative
applications, use the Sizes section and look in the ap-
propriate overlay column to determine which doors and
drawer fronts are needed. Then look up the door(s) and
drawer front(s) in the Price List catalog under the price
column number appropriate to your door style.
How to Use This Section
Replacement Door & Drawer Front Information
Replacement doors may be ordered for wall or base application.
When ordering, specify door style, hinging and •W (wall) or •B
(base). Any arch doors ordered as •B will be shipped in a square
design.
Example:
You need a replacement door for a wall 1830, hinged left.
Order: RD1830L•W

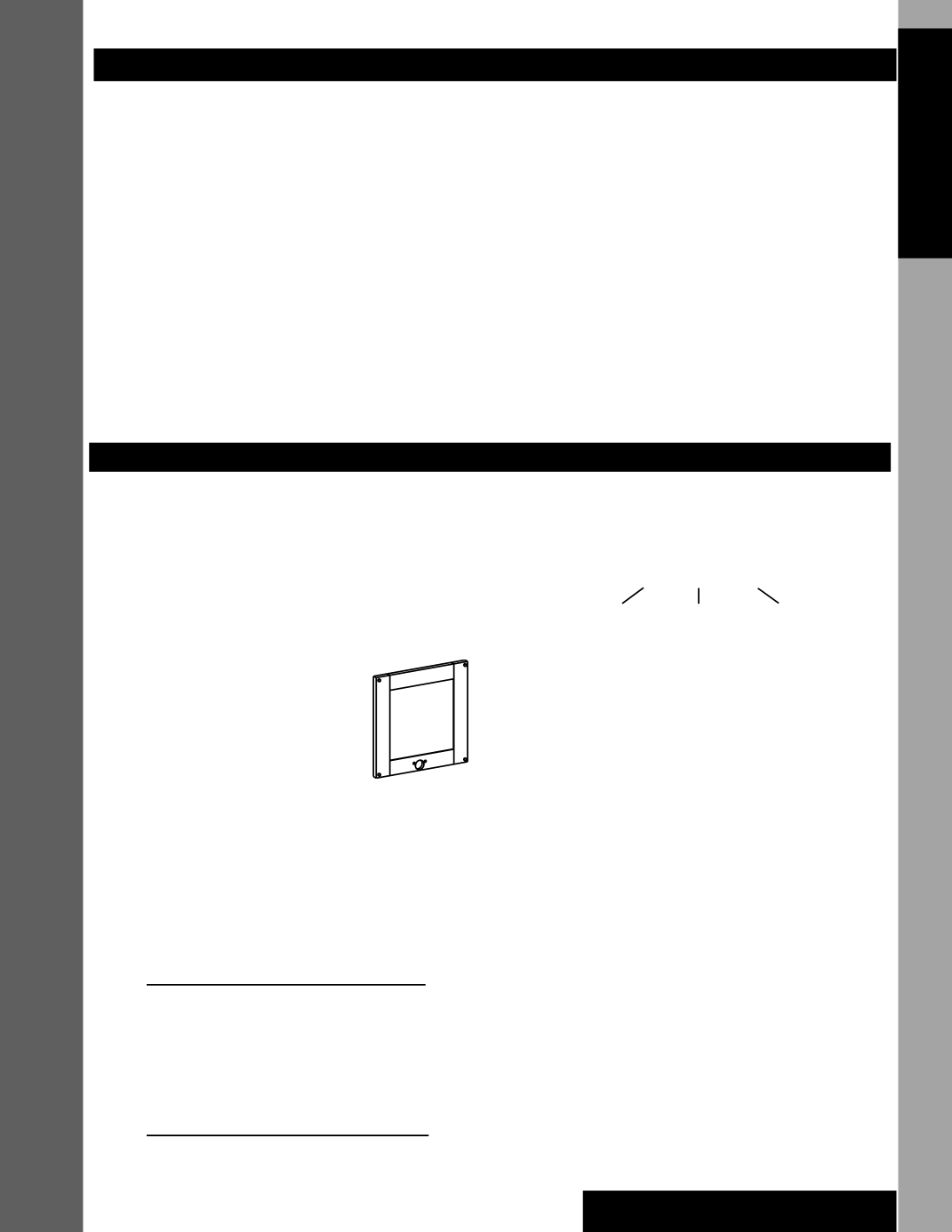

Replacement doors are prepared for hinges.
Replacement door and drawer fronts are
automatically drilled for PermaSet bumpers.
If a door is specified for no hinge (NH), the
door is drilled in all four corners for bumpers
(bumpers are included) and will also receive
a single cup hinge bore for internal tracking
purposes.
Replacement doors with glass inserts or mullion inserts installed
are available on doors 12˝ or wider up to 42˝ high.
To order, determine the replacement door(s) required and add
desired glass insert or mullion insert.
Example:
You need a Chateau glass insert for a wall 1830, hinged left.
Order:
RD1830L•W–1CHA1
Pricing:
RD1830L•W
+ 1 Chateau Insert for 12”- 30”high
= Total for replacement door
with insert installed
Example:
You need a Mullion insert for a wall 1836, hinged left.
Order:
RD1836L•W–1MD2
Pricing:
RD1836L•W
+ 1 Mullion Insert for 36” - 42” high
= Total for mullion door
with insert installed
Replacement doors and drawer fronts are coded for easy refer-
ence. The prefix codes indicate door or drawer and usage. The
first two digits indicate nominal width and the second two digits
indicate nominal height.
RD 18 30
Prefix
Nominal
Nominal
code
Width
Height
Prefix codes are as follows:
RD replacement door
RDA replacement door angle
RDAAG replacement door angle appliance garage
RDADP replacement door angle double panel
RDAG replacement door appliance garage
RDB replacement door butt
RDBDP replacement door butt double panel
RDC replacement door curve
RDDEZR*
replacement door desk easy reach
(two doors hinged together)
RDDP replacement door double panel
RDEZR*
replacement door easy reach
(two doors hinged together)
RDLS replacement door lazy susan
(two doors mitered together)
RDM replacement door multi-storage
pantry (door storage unit attached)
RDMC replacement door mirror cabinet
RDW replacement drawer front
RDWA replacement drawer front angle
RDWEZR*
replacement door wall easy reach
(two doors hinged)
RDWFD replacement door wall furniture drawer
RDWLBF replacement door wall lateral bifold cabinet
RDWTHG replacement door wall top hinge
RDWZ*
replacement door wall easy reach
(individual doors)
RDZ*
replacement door easy reach
(individual doors)
RDZA replacement door “Z” angle
* See notes on next page for RDZ doors.
