Vanity Cabinets
G98
Vanity Cabinet Accessories

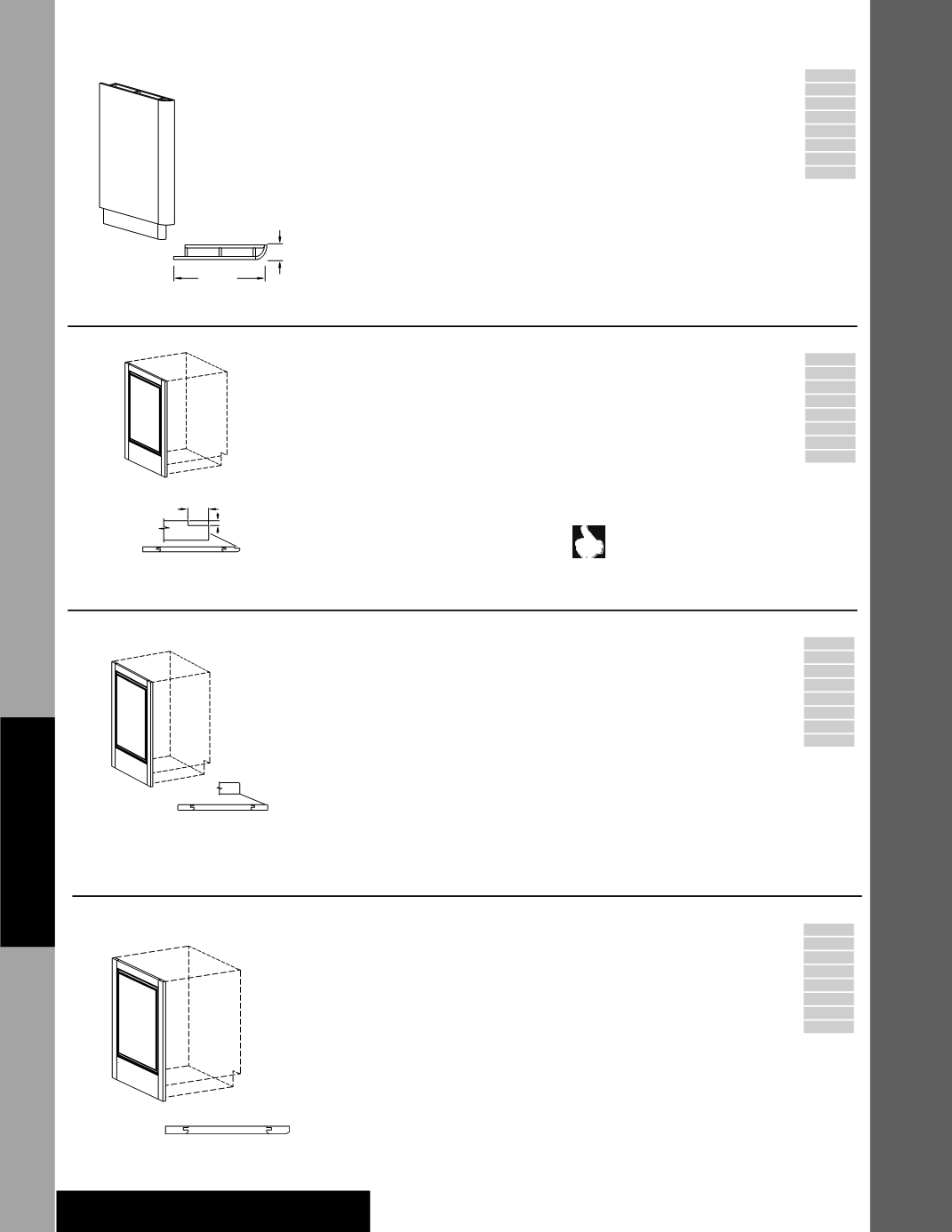

Vanity Curved End Panel
VEP32134 CEP
• 5/8” wood veneer construction
• Reversible, may be used on either right or left
end
• Curved matching toe kick included and
shipped separately
•
Not
available in Alder–Rustic door styles
• Painted hardwood supplied for EverCore™
•
Not
available in Sturbridge Oak; Beale,
Hayward Oak and Manchester supplied plain
sawn
PE
APC
APFC
FPEB
MI
RD
WR
VTK
21˝
21˝
3˝
34 ½˝
Matching Vanity End Panel
MVEP1834 R or L
MVEP2134 R or L
• 3/4” thick panel with matching door edge
profile on front edge only
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Left shown
• Laminate and slab door styles do
not
have
grooves and will
not
fit flush against 1/2˝ end
panel. A 3/16˝ shim is recommended.
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Sturbridge; Beale, Hayward
and Manchester supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End
Panels the reveal will differ from the
cabinet door height reveal. Matching
End Panels cover the entire side of the
cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
¾˝
Standard edge detail — fits flush against
1/2˝ end panel and behind face frame
17 / ˝, 20 /
34 ½˝
/
Matching Vanity End Panel–Square Edges
MVEP1834 •S
MVEP2134 •S
• 3/4˝ thick panel with square edge front and
back
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Reversible, may be used on either right or left
end
• No frame recess dado
• Field installation only
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Sturbridge; Beale, Hayward
and Manchester supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
Will not fit flush
against 1/2˝ end panel,
a 3/16˝ shim is recommended
17 / ˝, 20 /
34 ½˝
Furniture Matching Vanity End Panel
FMVEP1834 R or L
FMVEP2134 R or L
• 3/4” thick panel with matching door edge
profile on front edge only
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• For use with Furniture Plywood Ends
(FPEB)—flush ends
• Left shown
• Field installation only
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Sturbridge; Beale, Hayward
and Manchester supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
17 / ˝, 20 /
34 ½˝
