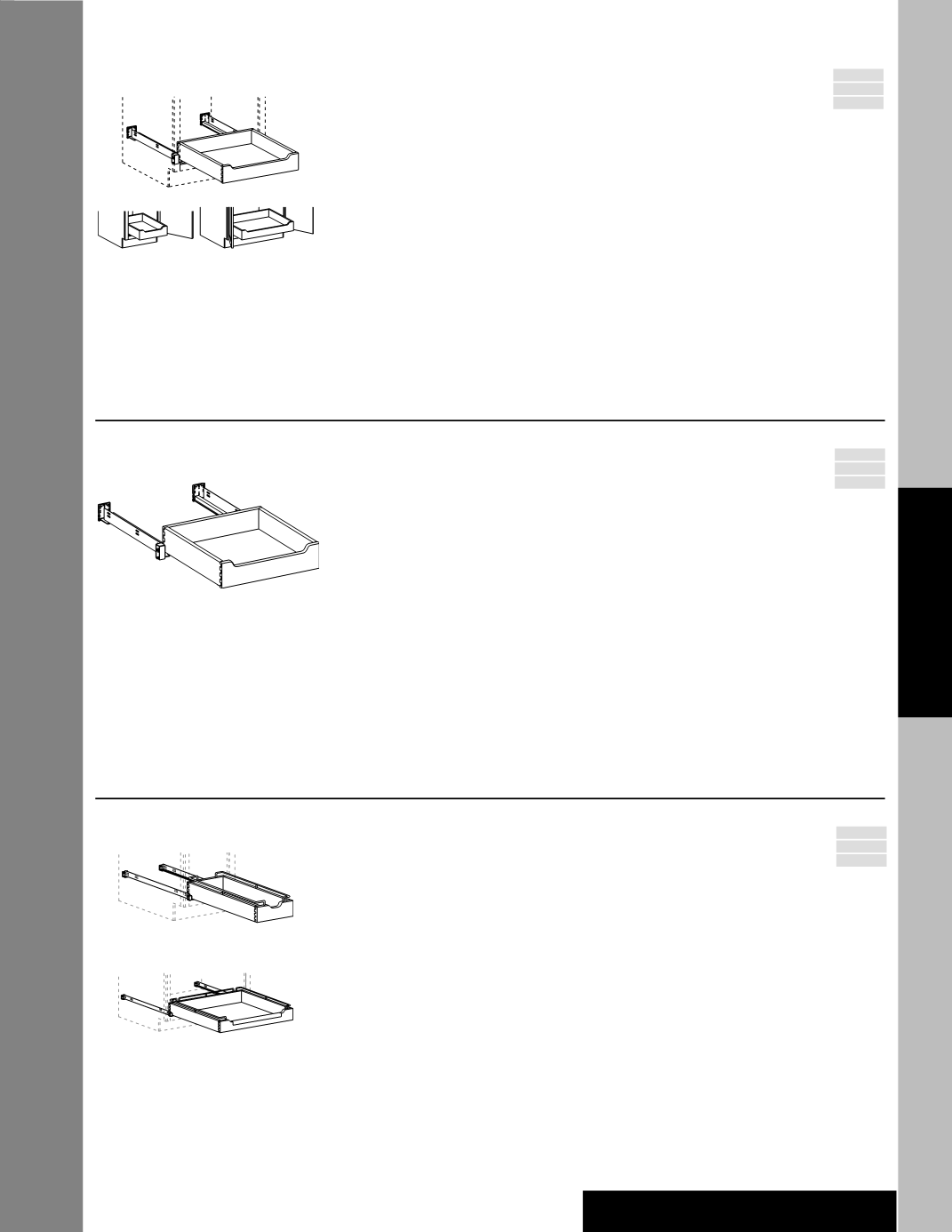

Roll-out Trays
Deluxe Dovetailed Roll-out Tray Factory Installed
i
1DXFWROT
i
2DXFWROT
i
3DXFWROT
i
4DXFWROT
i
5DXFWROT
i
6DXFWROT
s
1DXROT
s
2DXROT
s
3DXROT
s
4DXROT
s
5DXROT
s
6DXROT
• Roll-out Trays (ROT) are 4” deep, 3/4˝ solid
wood dovetailed sides with 3/16” plywood
bottom, notched front and full extension runners with
integrated buffer
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Tray location is adjustable
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet. Example:
B30BUTT-1FWROT-1DXFWROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Example:
Installed—U182484L-3DXROT
Installed—B15L-2DXROT
Installed—B36-2DXFWROT
APC
MI
CW
Available only in the width
configurations shown
i
When full-width Roll-out Trays (ROT) are
ordered for 30˝, 33˝ or 36˝ wide cabinets, the
double doors will have a mullion attached to
the left door. Full width Roll-out Trays (ROT)
are
not
available factory installed on Utility
cabinets (U) wider than 24˝.
s
Not
available on double door cabinets with a
center stile
Deluxe Dovetailed Roll-out Tray Field Installation
m
DXROT12•24 •21 •18
DXROT15•24 •21 •18
DXROT18•24 •21 •18
DXROT21•24 •21 •18
DXROT24•24 •21 •18
DXROT27•24 •21 •18
DXROT30•24 •21 •18
DXROT33•24 •21 •18
DXROT36•24 •21 •18
• Roll-out Trays (ROT) are 4” deep, 3/4˝ solid
wood dovetailed sides with 3/16” plywood
bottom, notched front and full extension runners with
integrated buffer
• 18”, 21” and 24” depths only
• Tray location is adjustable
• Mounting hardware and runners included
• Example:
For U182484—order DXROT18•24
For B15L—order DXROT15•24
For VB1518R—order DXROT15•18
For VB15L—order DXROT15•21
APC
MI
I
CW
m
Change Width (CW) option
not
available
Chrome Deluxe Roll-out Tray Factory Installed
i
1SDXFWROT
i
2SDXFWROT
i
3SDXFWROT
i
4SDXFWROT
i
5SDXFWROT
i
6SDXFWROT
1SDXROT
2SDXROT
3SDXROT
4SDXROT
5SDXROT
6SDXROT
• Roll-out Trays (ROT) are 5 1/2” deep, 3/4”
solid wood dovetailed sides with 1 1/2”
chrome rails on sides and back, 3/16” plywood bottom,
notched front with chrome pull and full extension
runners with integrated buffer
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Tray location is adjustable
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet. Example:
B30BUTT-1FWROT-1DXFWROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Mounting hardware and runners included
• Front chrome pullout is
not
included on trays for 12”
wide cabinets
• Example:
Installed—U182484L-3SDXROT
Installed—B15L-2SDXROT
Installed—B36-2SDXFWROT
APC
MI
CW
12" Wide Units
15" - 36" Wide Units
i
When full-width Roll-out Trays (ROT) are
ordered for 30˝, 33˝ or 36˝ wide cabinets, the
double doors will have a mullion attached to
the left door. Full width Roll-out Trays (ROT)
are
not
available factory installed on Utility
cabinets (U) wider than 24˝.
