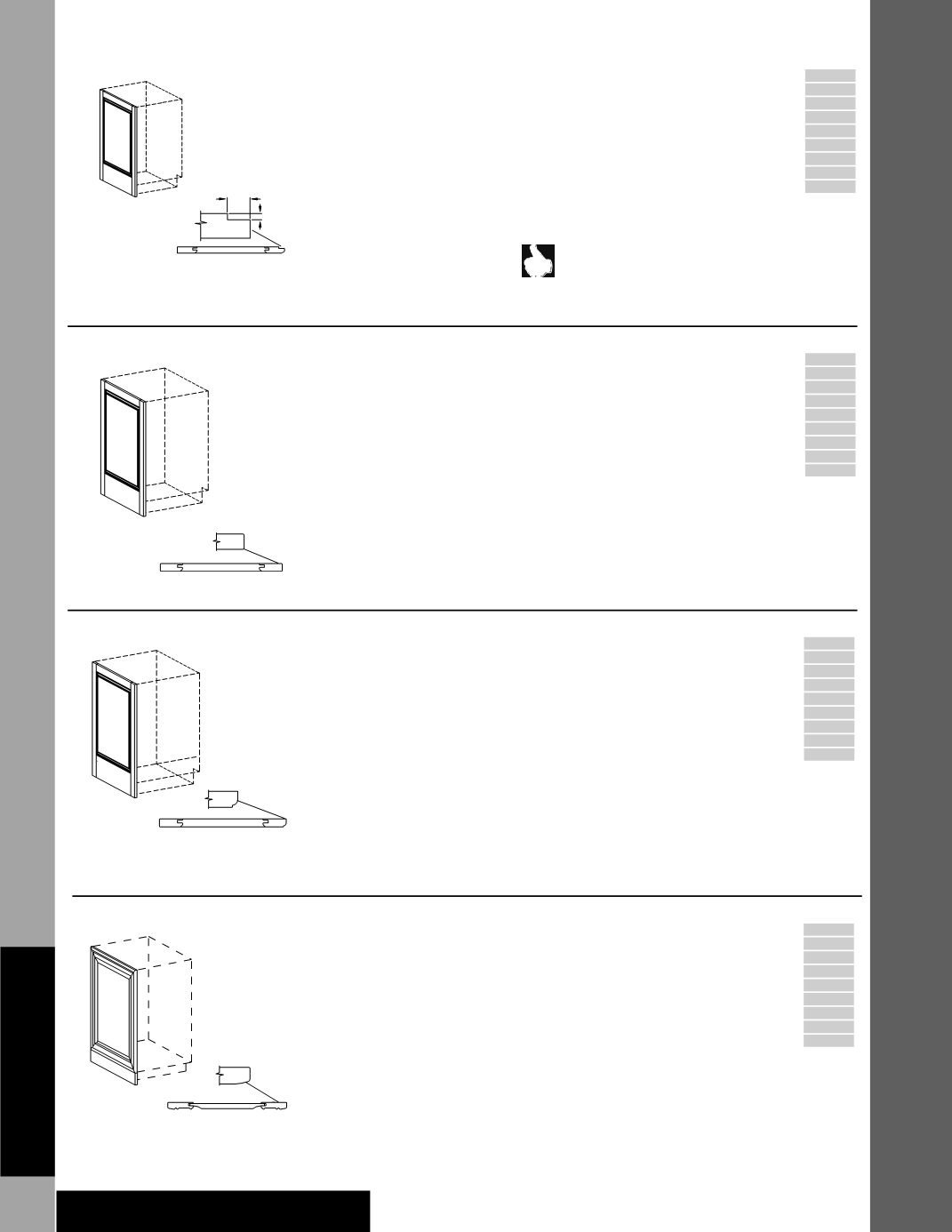

Matching Desk End Panel
MDEP18 R or L
MDEP21 R or L
MDEP24 R or L
• 3/4” thick panel with matching door edge profile on front edge
only
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Left shown
• Field installation only
• Laminate and slab door styles do
not
have grooves and
will
not
fit flush against 1/2˝ end panel. A 3/16˝ shim is
recommended.
•
Not
available in Morristown; Brockton, Melrose and
Putnam Oak supplied plain sawn
•
Not
available in mitered door styles; use End Panel–Mitered
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the reveal
will differ from the cabinet door height reveal. Matching
End Panels cover the entire side of the cabinet. See
drawing for exact measurements
PE
APC
APFC
FPEB
RD
I
WR
RTK
RTKP
VTK
29˝
17
7
/
8
˝
20
7
/
8
˝
23
7
/
8
˝
Standard edge detail—fits flush against
1/2˝ end panel and behind face frame
3
/
16
˝
¾˝
Matching Desk End Panel–Square Edges
MDEP18 S
MDEP21 S
MDEP24 S
• 3/4˝ thick panel with square edge front and back
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Field installation only
• Reversible, may be used on either right or left end
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in Morristown; Brockton, Melrose and
Putnam Oak supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
RD
I
WR
RTK
RTKP
VTK
29˝
17
7
/
8
˝
20
7
/
8
˝
23
7
/
8
˝
Furniture Matching Desk End Panel
FMDEP18 R or L
FMDEP21 R or L
FMDEP24 R or L
• 3/4” thick panel with matching door edge profile on
front edge only
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Left shown
• Field installation only
• For use with Furniture Plywood Ends (FPEB)—flush
ends
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in Morristown; Brockton, Melrose and
Putnam Oak supplied plain sawn
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
RD
I
WR
RTK
RTKP
VTK
Will not fit flush against 1/2˝end panel,
a 3/16˝ shim is recommended
29˝
17
7
/
8
˝
20
7
/
8
˝
23
7
/
8
˝
Matching Desk End Panel–Mitered
M•MDEP18
M•MDEP21
M•MDEP24
• 3/4˝ thick panel with matching door edge profile on
four sides
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Reversible, may be used on either right or left end
• Available in mitered door styles only
• Field installation only
• Toe kick shipped unattached
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
RD
I
WR
RTK
RTKP
VTK
Will not fit flush against 1/2˝end panel,
a 3/16˝ shim is recommended
29˝
17
7
/
8
˝
20
7
/
8
˝
23
7
/
8
˝
