Wiring a ceiling fan and light can seem like a daunting task, but it doesn’t have to be. The main thing to consider wiring a ceiling fan and light is determining how you want that fan to be controlled. Having the right tools will help the project to go smoothly and ensure you don’t get bogged down trying to use, for example, a razor knifed to strip wires, when a pair of wire strippers will do the job more accurately and about 10x faster.
It’s always important to follow the local codes in your area when wiring a ceiling fan and light. This method is often used when you simply cannot run a switch into the room, but you do have the ability to pull power to the fan form a nearby location. This method and the following are the most commonly used since they only require a single light switch. This is a slight adaptation of the above method that switches power for both the fan and the light kit form the wall switch. Note that power is fed through the switch and both the fan motor and light kit are recipients of this switched power source. Keep in mind that, while code makes certain stipulations, there are typically different ways to accomplish a wiring connection.
This is identical to situation #3 above, however we wanted to outline the wiring differences when the power is actually at the switch instead of in the ceiling. Hopefully this guide will get you on your way to installing a ceiling fan and making all of the required electrical connections to get it up and running smoothly. When he's not remodeling part of his house or playing with the latest power tool, Clint enjoys life as a husband, father and avid reader. I just bought a new ceiling fan and will be mounting it in a place where there is currently no fixture. The wires running out of the right side of the junction box go to the outlet on the other side of the room. The black and black with stripe at the light are for the fan and light to be individually controlled. I also want to add that you will not likely get enough slack in the wire that goes across the ceiling to make a splice. Back to the switch of concern: I can't tell whether the outlet or switch is the feed from the panel. In note 3 of the switch info, it says, "This control requires separate wiring for the ceiling fan and fan light kit.
I am looking through the fan assembly directions to see if they specify with more clarity the wires that come out of it and attach to my junction box.
To post questions, help other DIYers and reduce advertising (like the one on your left), join our DIY community. I am in the midst of a lighting project where I am installing 4 new can lights in a room that has an existing ceiling fan.
I have wired all the lights in parallel, not in series and now just need to run the power and the switches everywhere. This follows the standard method of using a 2-conductor cable for a switch loop where the redesignated white brings power to the switch. Code note: Beginning with the 2011 version of NEC with minor exceptions you must have a neutral at each switch box even if it isn't needed. The simple way to do this and be in compliance with the 2011 code revisions is to run a second cable, a 3-conductor, between the fan box and the switch box. The wires in the existing 2-conductor cable would be spliced to the wires in the cable bringing the power in, color-to-color.


What I am unsure of is whether I can wire it so that I take the hot and neutral from the fan wall switch along with the hot and neutral from the high hat switch and wire them into the receiver (to be placed in the wall) and then wire it up to the included wall control. So what I think you're saying is that you want to mount the receiver in the same box as the wall mount switch instead of the fan canopy?
According to that drawing it goes black from house to black on wall switch, other wall switch black to black on receiver. Well, Snooney is taking for granted that there are 2 separate cables that supply power up to your fan. The one side of the switch that has a single black wire attached to it is most likely the switched hot wire that feeds power to your fan. If this were the case, then the conductors that are all connected together would be switched power. At the wall switch, you'll have to seperate the two cables from the wire nut and ring out each one and mark them at the ceiling fan box. If i hook this up to a two wire switch do I also have to hook up some type of receiver in the canopy of the fan? The one black wire comes into the wall switch then from the wall switch the black wire is combined with the other 2 black wires. Home Improvement Stack Exchange is a question and answer site for contractors and serious DIYers.
There was a old ceiling fan with light and remote in a bedroom of my house that didn't work. Coming from the box was red and black which are both hot and were connected to the switch, and white.

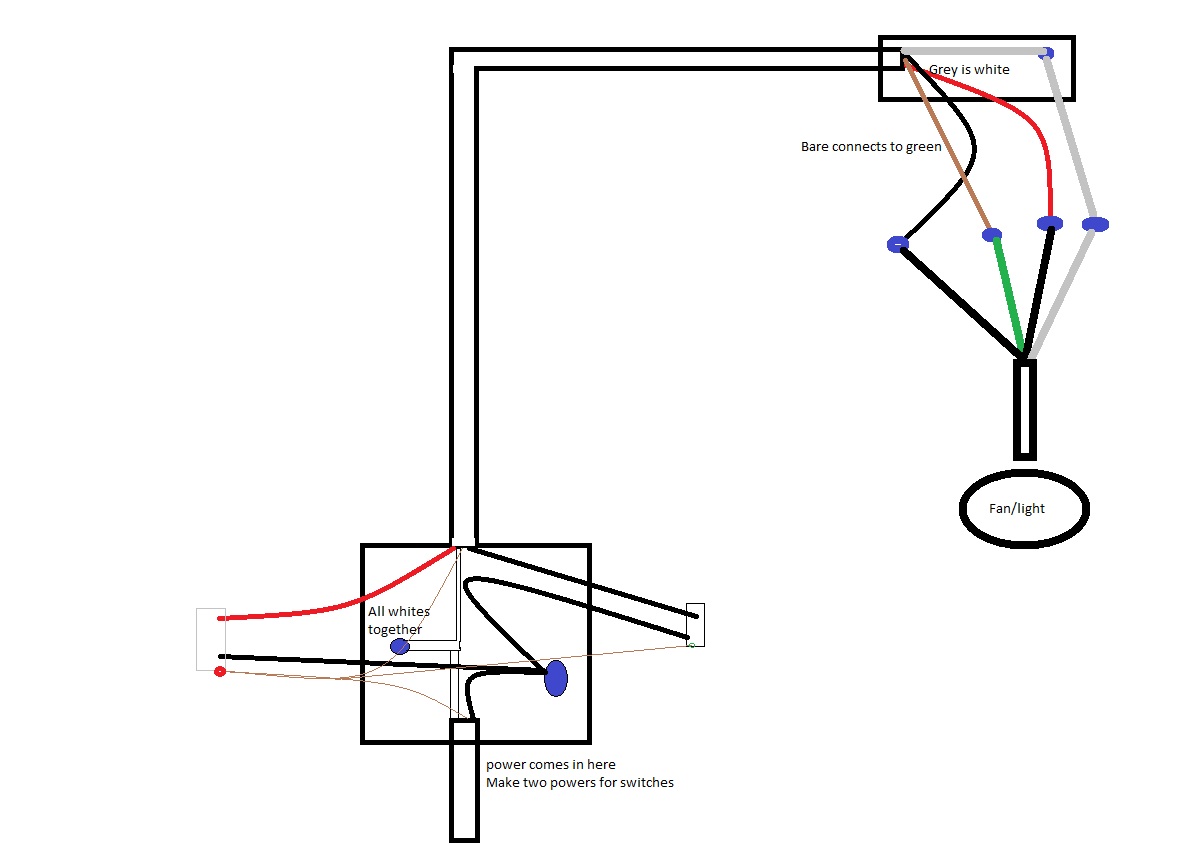

So in the ceiling I have 3 cables, 2 of them black and white, and the 3rd is red, white and black. The diagram is based on your description, and is my best guess as to what your wiring looks like. YeeHA everything works, except the fan doesnt turn off and i am hearing a very short buzzing noise about every two seconds. Not the answer you're looking for?Browse other questions tagged electrical wiring switch ceiling-fan or ask your own question. Pro Tool Reviews gives you a visual guide and step by step instructions on making the best connections for your particular ceiling fan installation.
It’s certainly an acceptable wiring method and the fans all come with pull string switches to control the fans and light kits. The power for the fan motor will typically be black, while most modern day fans will also have a separate blue wire that supplies power to the lights. In many older homes there was never any thought to wiring up a second switch since most homes didn’t have a powered ceiling fan.
What this does is allow you to turn the fan on and off with the wall switch (along with the light) without having to walk over and pull the chain to stop the fan motor. They almost never have a metal inner winding and are commonly undersized, which makes them difficult to use, if not unsafe. A ceiling fan makes a great addition to almost any room and is one of the easiest projects to complete that can really make an impact in your home and make you look and feel like a real handyman.
The light goes on and off with the switch just fine, but when I pull the chain to start the fan, the fan starts and the light comes on, even if the wall switch is in the off position. As shown in my initial post, the blue switch wire is for the fan and the red switch wire is for the light.
In the switch box, the white wires would just be spliced together if you don't need a neutral there right now. Wire the existing 2-conductor cable to the switch as a switch loop - power down on color-tagged white wire and up on black - to control the lights.
But I am not sure the canopy unit is designed to be wired directly up to the household current, as opposed to going through the fan first.


Since this switch ONLY controls the power to the fan, this would mean there would need to be multiple cables feeding the fan from the switch. This means the black wires bundled under a wirenut are the incomming hot wire and then onward UNSWITCHED power. I took a guess at what your wiring looked like, without actually seeing it or testing anything. ON a scale of 1-10, the level of difficulty on this project is a 5, though it can be more complex if you include the ancillary projects such as running wiring through walls, etc. When working with electricity, always remember to turn off the power, test the wiring with an electrical tester (or voltmeter) to ensure the power is off, secure the panel box so no one can accidentally re-engage power while you are working, and consult a professional to ensure you are doing things correctly and within the specifications of your state and local codes. While we show a small strip of electrical tape, we recommend actually wrapping it around all the exposed white wire.
There are also lots of really convenient switches that put this dual control into one neat little package.
Jumping means that you strip the insulation away from a small area of wire, just large enough to loop around the hot terminal. Secondly, this method of wiring makes swapping out ceiling fans easy as cutting power at the switch eliminates all power to the ceiling box. What does change is that you can safely deactivate the ceiling fan box simply by turning off the switch.
Instead, be sure to grab a small assortment pack at your local home improvement or hardware store. The white wires of the switch loops must be redesignated as ungrounded conductors (hot) by coloring both ends by remarking with tape or felt tip marker. The black in the 2-conductor would be pigtailed to feed both switches, and the black and red wires in the 3-conductor would be connected to take the switched power back up - say black for the fan and red for the lights.
All that’s left at this point is to tie together all the ground wires and neutral wires (respectively). You then loop that exposed wire around the hot terminal of the first switch and then strip the end and connect that to the second switch. Note that we still recommend deactivating the breaker and checking your wires with a voltmeter, but it’s worth nothing nonetheless. This is handy when replacing ceiling fans with a similar model, however we still recommend shutting down the breaker, lest someone walk in on you and attempt to turn on the lights!
While typically not necessary, we recommend taping any wire nuts after you make those connections. He hopes his efforts at PTR will provide builders and contractors with reliable and engaging tool reviews to help them make better tool purchasing decisions. This is why it's so important NOT to take things for granted and to get more information before telling someone to start disconnecting wires, this so the unknowing questioner doesn't end up in a bigger mess than what they initially came here with. The hot returns are then the red wire and the white wire which you tape black (on both ends) to designate it as a hot wire.
Wire nuts are normally very reliable, but it never hurts to add an extra layer of protection to keep them from ever unwinding. The light and fan speeds are regulates using a hand held remote device which will ramp up both the fan and light independently of each other. I point this out to Snooney in particular, especially since he seems so intent on proving his WRONG point rather than stepping back and taking a look at the logic.
This is just a good habit to get into and costs next to nothing in terms of time or money to implement. Your best bet is to find somebody that knows what they're doing, and can actually be there.
