Port Usage

The architecture diagrams in the following sections show the port usage within an enterprise, with port number references in the relevant tables.

Firewall Considerations in VMware vSphere Environments

Firewall Considerations in Microsoft Hyper-V Environments

Firewall Considerations in Microsoft Azure Environments

Firewall Considerations in AWS Environments

Firewall Considerations in VMware vSphere Environments

MSP Environments

Firewall Considerations in VMware vSphere Environments

The following architecture diagram shows the ports that must be opened in the firewalls on all sites.

Zerto can be installed at multiple sites and each of these sites can be paired to any of the other sites.

Zerto supports both the protected and recovery sites being managed by a single vCenter Server or System Center Virtual Machine Manager. For example, in the following scenario:

• From a branch office, to the main office, both managed by the same System Center Virtual Machine Manager.
• From one host to a second host, both managed by the same System Center Virtual Machine Manager.
• To the same host but using different storage for recovery.

It is recommended to install Zerto in the main office site where protected machines will be recovered.

The following table provides basic information about the ports shown in the above diagram by Zerto.

Consider firewall rules if the services are not installed on the same network.

Note: UDP ports in the 444xx range for DHCP are not required and can therefore be blocked.
Port Purpose
22 Required between an ESXi host and the ZVM during installation of a VRA.
443 Required between the ZVM and the vCenter Server.
443 Required between an ESXi host and the ZVM during installation of a VRA.
445 Required between LTR service and a network shared repository on top of SMB protocol.
2049 Required between LTR service and a network shared repository on top of NFS protocol.
4005 Log collection between the ZVM and site VRAs , using TLS over TCP communication.
4006 TLS over TCP communication between the ZVM and local site VRAs and the site VBA.
4007 Control communication between protecting and peer VRAs.
4008 Communication between VRAs to pass data from protected virtual machines to a VRA on a recovery site.
4009 TLS over TCP communication between the ZVM and local site VRAs to handle checkpoints.
5672 TCP communication between the ZVM and vCloud Director for access to AMQP messaging.
7073

Internal port, used only on the ZVM VM. Used for communication with the service in charge of collecting data for the Zerto Resource Planner.

Note: Unless you select the checkbox ‘Enable Support notification and product improvement feedback’, data is not transmitted to Zerto Analytics.

9071*

HTTPS communication between paired ZVMs, when both Zerto versions are 8.0 and above.

9080*

Communication between the ZVM, Zerto Powershell Cmdlets, and Zerto Diagnostic tool.
9081* Communication between paired ZVMs**, maintained for backward compatibility purposes.
9180* Communication between the ZVM and the VBA.
9669* Communication between ZVM and ZVM GUI and ZVM REST APIs, and the ZCM.
9989 Communication between ZCM, and ZCM GUI and ZCM REST APIs.

*The default port provided during the ZVR installation which can be changed during the installation.

**When the same vCenter Server is used for both the protected and recovery sites, ZVR is installed on one site only and this port can be ignored.

Firewall Considerations in Microsoft Hyper-V Environments

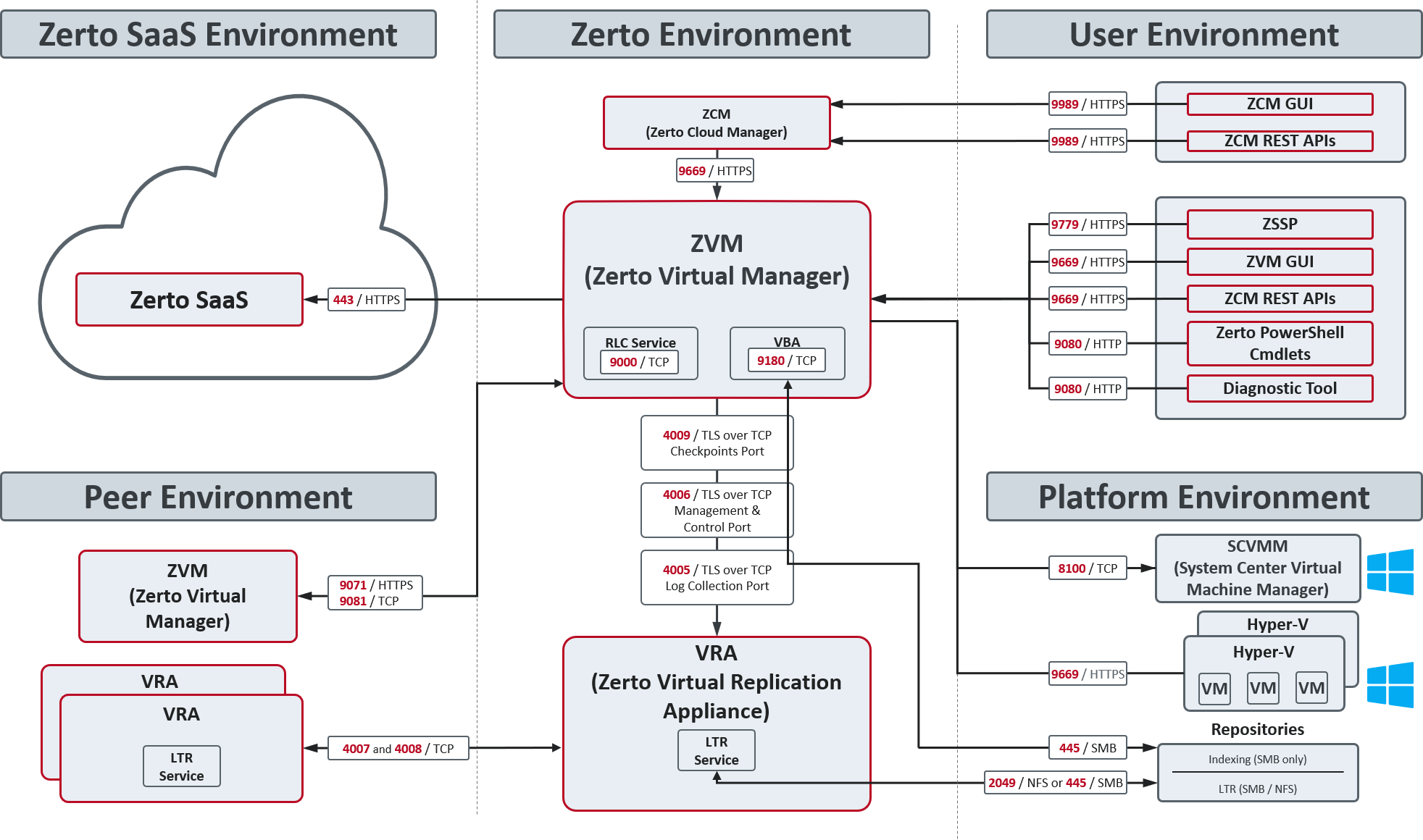

The following architecture diagram shows the ports that must be opened in the firewalls on all sites.

Zerto can be installed at multiple sites and each of these sites can be paired to any of the other sites.

Zerto supports both the protected and recovery sites being managed by a single vCenter Server or System Center Virtual Machine Manager. For example, in the following scenario:

• From a branch office, to the main office, both managed by the same System Center Virtual Machine Manager.
• From one host to a second host, both managed by the same System Center Virtual Machine Manager.
• To the same host but using different storage for recovery.

It is recommended to install Zerto in the main office site where protected machines will be recovered.

The following table provides basic information about the ports shown in the above diagram by Zerto.

Consider firewall rules if the services are not installed on the same network.

The following table provides basic information about the ports shown in the above diagram by Zerto.

Note: UDP ports in the 444xx range for DHCP are not required, and can therefore be blocked.
Port Purpose
445 Required between LTR service and a network shared repository on top of SMB protocol.
2049 Required between LTR service and a network shared repository on top of NFS protocol.
4005 Log collection between the ZVM and site VRAs , using TLS over TCP communication.
4006 TLS over TCP communication between the ZVM and local site VRAs and the site VBA.
4007 Control communication between protecting and peer VRAs.
4008 Communication between VRAs to pass data from protected virtual machines to a VRA on a recovery site.
4009 TLS over TCP communication between the ZVM and local site VRAs to handle checkpoints.
7073

Internal port, used only on the ZVM VM. Used for communication with the service in charge of collecting data for the Zerto Resource Planner.

Note: Unless you select the checkbox ‘Enable Support notification and product improvement feedback’, data is not transmitted to Zerto Analytics.
8100 Communication between the ZVM and the SCVMM (System Center Virtual Machine Manager).

9071*

HTTPS communication between paired ZVMs, when both Zerto versions are 8.0 and above.

9080*

Communication between the ZVM, Zerto Powershell Cmdlets, and Zerto Diagnostic tool.
9081*

Communication between paired ZVMs**, maintained for backward compatibility purposes.

Note:
• When a single SCVMM is used for both protection and recovery, only one ZVM is installed and port 9081 is not used.
• Recovery to a different SCVMM uses port 9081 between the ZVMs in each site.

9180*

Communication between the ZVM and the VBA.

9669*

Communication between ZVM and ZVM GUI and ZVM REST APIs, and the ZCM.

Communication between every Hyper-V host and the Zerto Virtual Manager.
9779 Communication between ZVM and ZSSP (Zerto Self Service Portal).
9989 Communication between ZCM, and ZCM GUI and ZCM REST APIs.

*The default port provided during the ZVR installation which can be changed during the installation.

Firewall Considerations in Microsoft Azure Environments

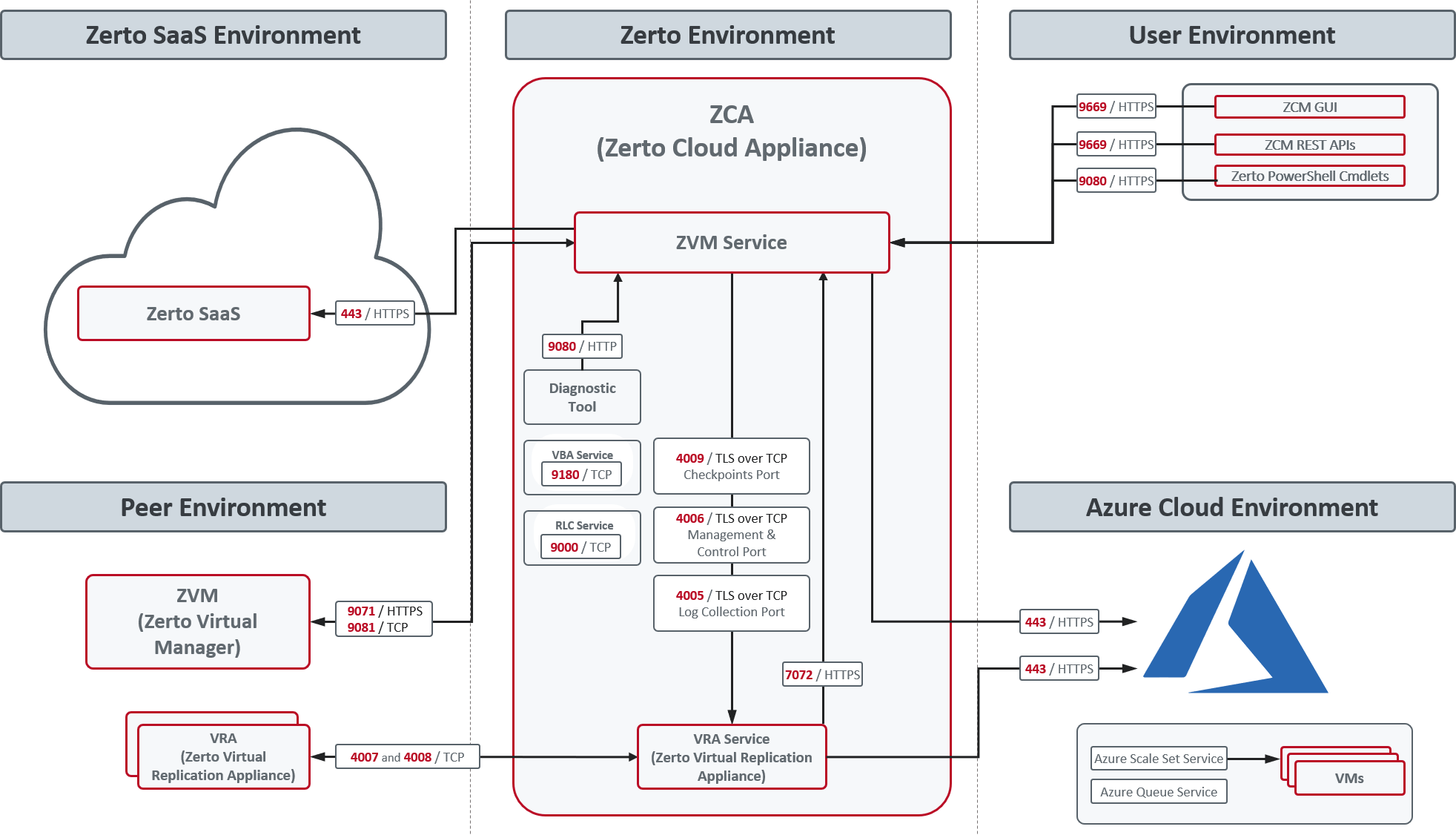

The following architecture diagram shows the ports that must be opened in the firewalls on all sites.

The following table provides basic information about the ports shown in the above diagram by Zerto.

Zerto Cloud Appliance (ZCA) requires the following ports to be open in the Azure site firewall, set in the Azure network security group:

Port Description
443
• Required between the ZVM and the Azure Cloud environment.
• Required between the Azure REST Service and the ZVM during installation of a VRA.
• Required for communication between the ZVM and Azure Scale Set and Queues services.
4005 Log collection between the ZVM and site VRAs , using TLS over TCP communication.
4006 TLS over TCP communication between the ZVM and local site VRAs and the site VBA.
4007 Control communication between protecting and peer VRAs.
4008 Communication between VRAs to pass data from protected virtual machines to a VRA on a recovery site.
4009 TLS over TCP communication between the ZVM and local site VRAs to handle checkpoints.
7072 Communication between the VRA and ZVM. Required for metadata promotion.
7073

Internal port, used only on the ZVM VM. Used for communication with the service in charge of collecting data for the Zerto Resource Planner.

Note: Unless you select the checkbox ‘Enable Support notification and product improvement feedback’, data is not transmitted to Zerto Analytics.

9071*

HTTPS communication between paired ZVMs, when both Zerto versions are 8.0 and above.

9080*

Communication between the ZVM, Zerto Powershell Cmdlets, and Zerto Diagnostic tool.
9081* Communication between paired ZVMs, maintained for backward compatibility purposes**.
9180* Communication between the ZVM and the VBA.
9669* Communication between ZVM and ZVM GUI and ZVM REST APIs, and the ZCM.
9779 Communication between ZVM and ZSSP (Zerto Self Service Portal).
9989 Communication between ZCM, and ZCM GUI and ZCM REST APIs.

*The default port provided during the ZVR installation which can be changed during the installation.



Firewall Considerations in AWS Environments

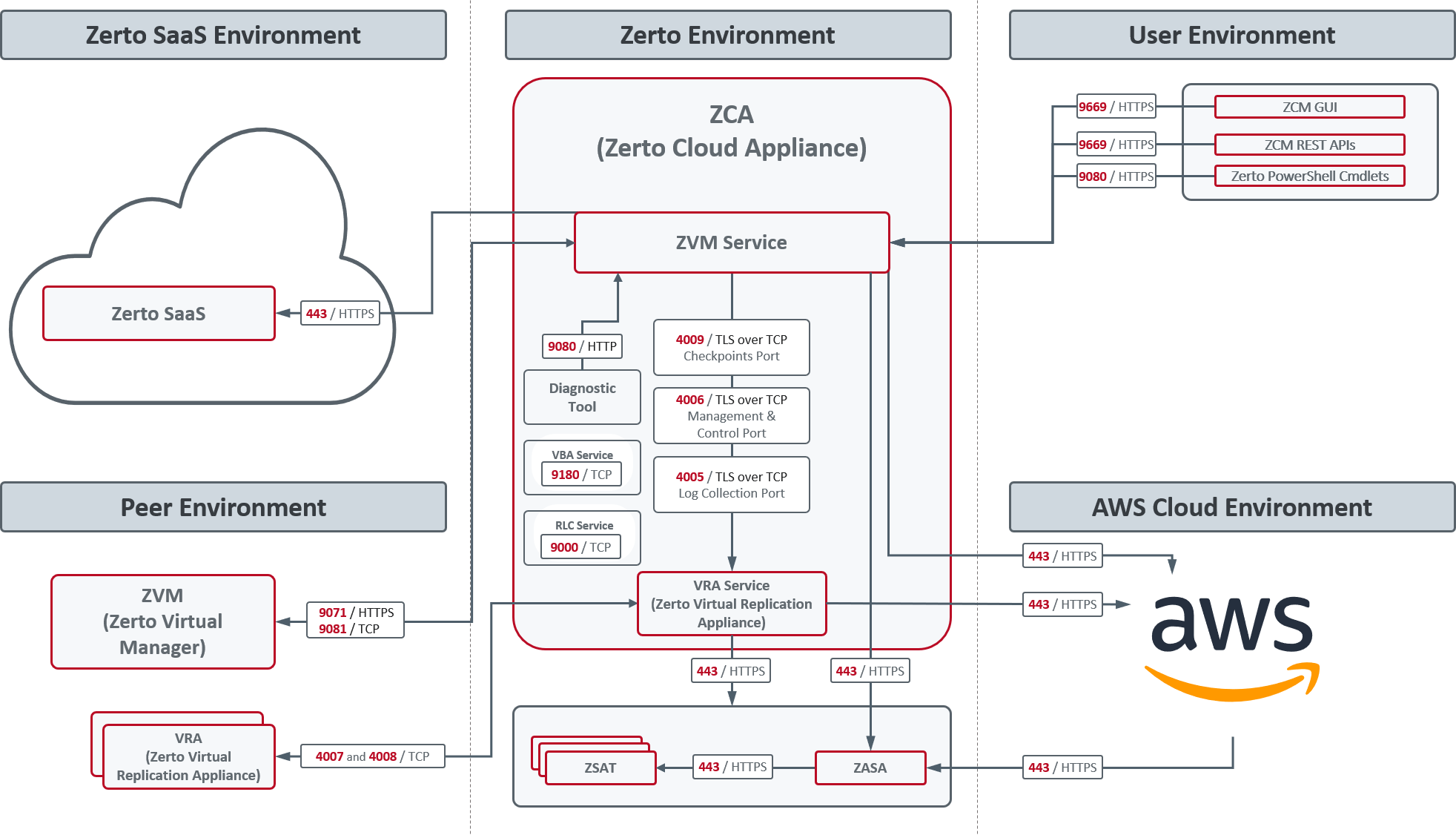

The following diagram shows Zerto components deployed on one site and the ports and communication protocols used between the components.

Zerto Cloud Appliance requires the following ports to be open in the AWS site firewall, set in the Amazon security group:

Port Description
443 Required between the ZVM and the AWS Cloud environment.
443 Required between ZVM Service and ZASA.
4005 Log collection between the ZVM and site VRAs , using TLS over TCP communication.
4006 TLS over TCP communication between the ZVM and local site VRAs and the site VBA.
4007 Control communication between protecting and peer VRAs.
4008 Communication between VRAs to pass data from protected virtual machines to a VRA on a recovery site.
4009 TLS over TCP communication between the ZVM and local site VRAs to handle checkpoints.
7073

Internal port, used only on the ZVM VM. Used for communication with the service in charge of collecting data for the Zerto Resource Planner.

Note: Unless you select the checkbox ‘Enable Support notification and product improvement feedback’, data is not transmitted to Zerto Analytics.

9071*

HTTPS communication between paired ZVMs, when both Zerto versions are 8.0 and above.

9080*

Communication between the ZVM, Zerto Powershell Cmdlets, and Zerto Diagnostic tool.
9081* Communication between paired ZVMs**, maintained for backward compatibility purposes.
9180* Communication between the ZVM and the VBA.
9669* Communication between ZVM and ZVM GUI and ZVM REST APIs, and the ZCM.
9779 Communication between ZVM and ZSSP (Zerto Self Service Portal).
9989 Communication between ZCM, and ZCM GUI and ZCM REST APIs.

*The default port provided during the ZVR installation which can be changed during the installation.

**When the same vCenter Server is used for both the protected and recovery sites, ZVR is installed on one site only and this port can be ignored.

Environments with Zerto Cloud Manager

When Zerto is installed on multiple sites, a Zerto Cloud Manager can be used to manage all the sites from one pane of glass for management, orchestration, reporting, and monitoring of recovery operations.

MSP Environments

The following ports must be opened in the firewalls in both the organization and Managed Service Provider sites.

Port # Description
22 9, 24 During Virtual Replication Appliance (VRA) installation on ESXi 5.1 and higher for communication between the Zerto Virtual Manager (ZVM) and the ESXi hosts IPs and for ongoing communication between the ZVM in the cloud site – but not the customer site – and a Zerto Cloud Connector.
443 2, 6, 8, 19 During VRA installation on ESX/ESXi hosts for communication between the ZVM and the ESX/ESXi hosts IPs and for ongoing communication between the ZVM and vCenter Server and vCloud Director.
4005 10 Log collection between the Zerto Virtual Manager and Virtual Replication Appliances on the same site , using TLS over TCP communication.
4006 11 TLS over TCP communication between the Zerto Virtual Manager and Virtual Replication Appliances on the same site.
4007 16, 21 TCP control communication between protecting and recovering VRAs and between a Zerto Cloud Connector and VRAs.
4008 17, 25 TCP communication between VRAs to pass data from protected virtual machines to a VRA on a recovery site and between a Zerto Cloud Connector and VRAs.
4009 12 TLS over TCP communication between the Zerto Virtual Manager and site Virtual Replication Appliances to handle checkpoints.
5672 20 TCP communication between the ZVM and vCloud Director for access to AMQP messaging.
7073

Internal port, used only on the ZVM VM. Used for communication with the service in charge of collecting data for the Zerto Resource Planner.

Note: Unless you select the checkbox ‘Enable Support notification and product improvement feedback’, data is not transmitted to Zerto Analytics.
8100 - Communication between the Zerto Virtual Manager and the System Center Virtual Machine Manager in a customer site running Zerto Virtual Replication with Hyper-V.
9071*   HTTPS communication between paired ZVMs, when both Zerto versions are 8.0 and above.
9080 1, 13, 15, 18
• HTTP communication between the ZVM and Zerto internal APIs, a Zerto Cloud Manager (ZCM), cmdlets, which should only be available to a customer using DRaaS and not ICDR.
• HTTP communication between ZVM and Zerto Cloud Manager (ZCM). When the customer's ZCM is v5.5 and above, and their ZVM is v5.0, communication is via this port.
9081 7, 23, 27

TCP communication between Zerto Virtual Managers and between a customer Zerto Virtual Manager and a Zerto Cloud Connector, maintained for backward compatibility purposes.

This port must not be changed when providing DRaaS.

9082 and up 22, 26, 28, 29 Two ports for each VRA (one for port 4007 and one for port 4008) accessed via the Zerto Cloud Connector installed by the Managed Service Provider. There is directionality to these ports. Use a port range starting with port 9082. For example, Customer A network has 3 VRAs and customer B network has 2 VRAs and the Managed Service Provider management network has 4 VRAs, then the following ports must be open in the firewall for each cloud: The Managed Service Provider's VRAs need to use 6 ports to reach customer A's VRAs, while customer A's VRAs need 8 ports to reach the cloud's VRAs. The Managed Service Provider's VRAs need to use 4 ports to reach customer B's VRAs, while customer B's VRAs need 8 ports to reach the cloud's VRAs.
9180 32 Communication between the VBA and VRA.
9669 3, 4, 5, 14 HTTPS communication between:
•Machines running Zerto User Interface and Zerto Virtual Manager
•Zerto Virtual Manager and Zerto REST APIs
•ZVM and Zerto Cloud Manager (ZCM). When the customer's ZCM and ZVM are both v5.5 and above, communication is via this port.
9779 30 HTTPS communication between the Zerto Self-Service Portal for in-cloud (ICDR) customers and a ZVM.
9989 31 HTTPS communication between the browser and the Zerto Cloud Manager.

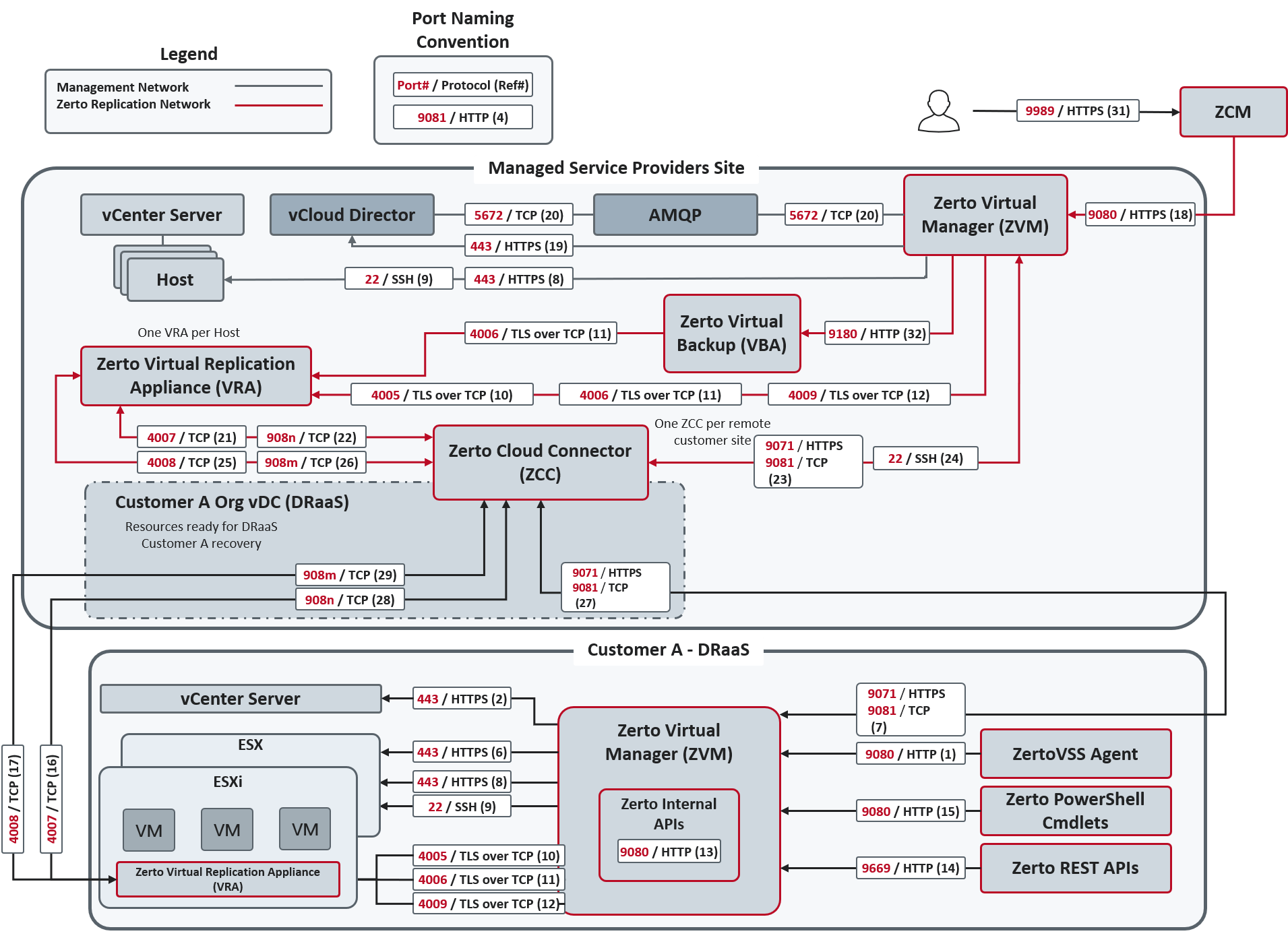

The following architecture diagram shows the port usage when a Managed Service Provider is involved, providing in-cloud disaster recovery, with # references to the above table:
