Setting Up Routing
Use the following procedure to set up routing to enable the VRAs on the site to communicate with the peer site VRAs before defining the VRAs.
To set up routing:
1. In the SETUP > VRAs tab, select MORE > Paired Site Routing.

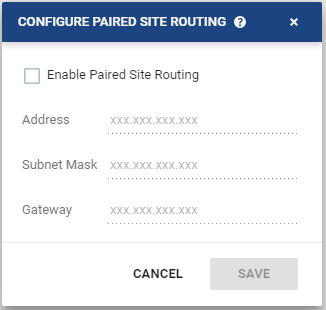

The Configure Paired Site Routing dialog is displayed.
2. Click Enable Paired Site Routing.
3. Specify the following, and then click SAVE:
■ Address: The IP address of the next hop at the local site, the router or gateway address, that is used to access the peer site network.
■ Subnet Mask: The subnet mask for the peer site network.
■ Gateway: The gateway for the peer site network.
These access details are used to access all VRAs installed on the peer site after the information is saved.
