List View - RETENTION
The following information is displayed in the RETENTION STATUS view:

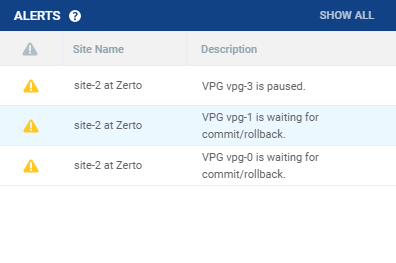

■ Alert status indicator: The color indicates the status of the VPG. Clicking the alert displays a popup of all active alerts with descriptions:
■ Green: The VPG is being replicated, including syncing the VPG between the sites.
■ Orange: The VPG is being replicated but there are problems, such as an RPO value larger than the Target RPO Alert value specified for the VPG.
■ Red: The VPG is not being replicated, for example, because communication with the remote site is down.
■ VPG Name (#VMs): The name of the VPG. The name is a link: Click the VPG name to drill-down to more specific details about the VPG that are displayed in a dynamic tab.
■ Retention Policy: Whether the VPG is protected against a disaster only with the ability to recover to a point in time up to 30 days before the disaster, or protection is extended to include retention sets of the virtual machines, going back for a maximum of one year.
■ Retention Policy Status: The status of the retention set.
■ Repository Name: The name of the repository where the jobs are stored.
■ Restore Point Range: The restore points for the retention job out of the total retention jobs run for the VPG.
■ Retention Policy Scheduling: The schedule for the retention process.
