Monitoring Retention Status via the SETUP Tab

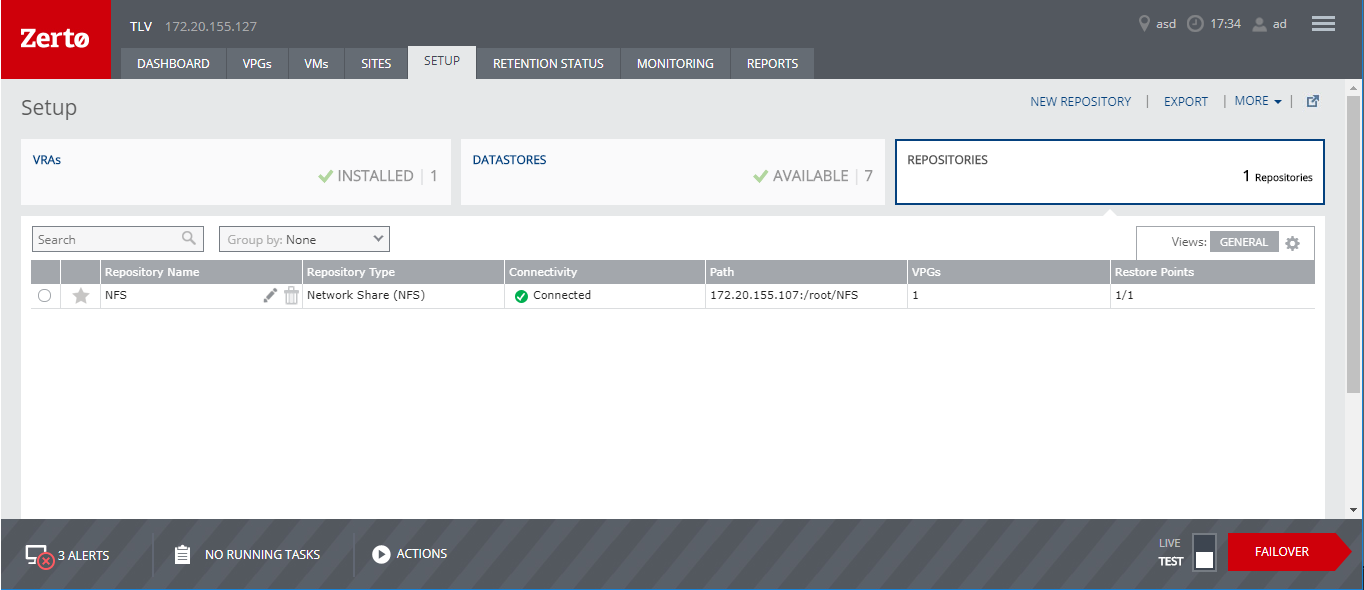

In the SETUP tab > REPOSITORIES sub-tab, view details of all the repositories which were defined, and which can be used for retention. All the repositories created for the site are displayed in this tab.
For each repository, the following information is displayed:
Star:
A star indicates that this is the default repository.
Repository Name:
The name of the repository. This field contains icons that you can click to edit or delete the repository.
Repository Type:
The type of repository.
Connectivity:
Whether the repository is connected or not.
Path:
The path to the repository.
VPGs:
The VPG which uses this repository for Long Term Retention.
Restore Points:
The restore points for the retention sets out of the total retention sets saved to the repository.

TIP
In this window you can also create a new repository by clicking NEW REPOSITORY.
