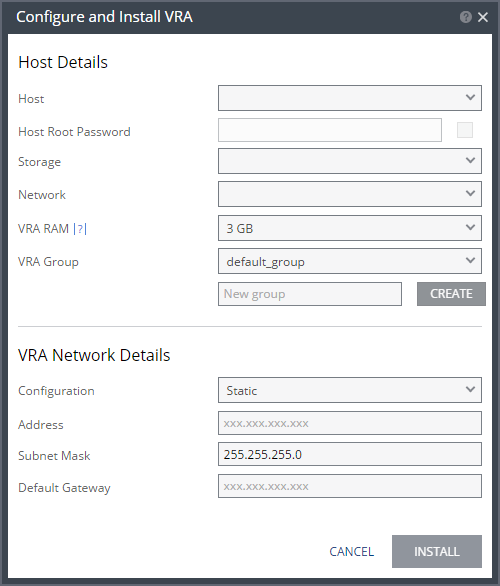

Configure and Install VRA Dialog

Host: The host under which the VRA is installed. The drop-down displays the hosts managed by the hypervisor manager that do not have a VRA installed, with the selected host displayed by default.

Host Root Password: For future use.

Storage: The storage that the VRA will use for protected virtual machine data on the recovery site, including the journals. You can install more than one VRA on the same storage.

Network: The network used to access the VRA.

VRA RAM: The amount of memory to allocate to the VRA. The amount determines the maximum buffer size for the VRA for buffering IOs written by the protected virtual machines, before the writes are sent over the network to the recovery VRA. The recovery VRA also buffers the incoming IOs until they are written to the journal. If a buffer becomes full, a Bitmap Sync is performed after space is freed up in the buffer.

Amount of VRA RAM	VRA Buffer Pool Size
1GB	450MB
2GB	1450MB
3GB	2300MB
3GB	2300MB
4GB	3,300MB
5GB	4,300MB
6GB	5,300MB
7GB	6,300MB
8GB	7,300MB
9GB	8,300MB
10GB	9,300MB
11GB	10,300MB
12GB	11,300MB
13GB	12,300MB
14GB	13,300MB
15GB	14,300MB
16GB	15,300MB

The protecting VRA can use 90% of the buffer for IOs to send over the network and the recovery VRA can use 75% of the buffer. That is, for example, a protecting VRA defined with 2GB of RAM can buffer approximately 1305MB before the buffer is full and a Bitmap Sync is required.

VRA Group: Specify the VRA Group as free text to identify the group or select from a previously specified group. You group VRAs together when VRAs use different networks so they can be grouped by network, for example when the protected and recovery sites are the same site and you want to replicate to different storage in the site. The group name is free text you use to identify the group.

The priority assigned to a VPG dictates the bandwidth used. The Zerto Virtual Manager distributes bandwidth among the VRAs based on this priority and the VPGs with higher priorities are handled before writes from VPGs with lower priorities.

To create a new group, enter the new group name over the text New group and click CREATE.

Configuration: Either have the IP address allocated via a static IP address or a DHCP server. The Static option is the recommended option.
