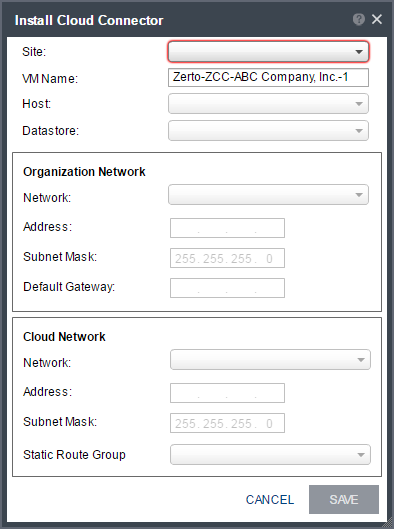

Install Cloud Connector Dialog
A Zerto Cloud Connector is a virtual machine installed on the cloud side, one for each customer organization replication network. The Zerto Cloud Connector routes traffic between the customer network and the cloud replication network, in a secure manner without requiring the cloud service provider to go through complex network and routing setups, ensuring complete separation between the customer network and the cloud service provider network. The Zerto Cloud Connector has two Ethernet interfaces, one to the customer’s network and one to the cloud service provider's network. Within the cloud connector a bidirectional connection is created between the customer and cloud service provider networks. Thus, all network traffic passes through the Zerto Cloud Connector, where the incoming traffic on the customer network is automatically configured to IP addresses of the cloud service provider network.
Site – The site used by the cloud service provider for the organization.
VM Name – The name to assign to the cloud connector.
Host – The recovery ESX/ESXi host for the cloud connector virtual machine. The dropdown displays the hosts which do not have a cloud connector installed.
Datastore – The datastore for the cloud connector virtual machine.
Organization Network – The network details used by the customer:
Network – The name of the network from the list of available networks.
Address – The IP address to access the organization network. The customer pairs to this IP address.
Subnet Mask – The subnet mask for the network. The default value is 255.255.255.0.
Default Gateway – The default gateway for the network.
Cloud Network – The local network details for the cloud service provider:
Network – The name of the cloud-side network from the list of available networks.
Address – The IP address to access the network used by the cloud service provider to communicate with the cloud connector.
Subnet Mask – The subnet mask for the network. The default value is 255.255.255.0.
Static Route Group – The name of the group for which static routes are defined to the Zerto Virtual Manager network and VRA network. If a static route group is not specified, it is assumed that the Zerto Virtual Manager and VRAs are on the cloud network.
