Monitoring Offsite Backups – The OFFSITE BACKUP Tab
View details of the offsite backup jobs in the OFFSITE BACKUP tab either by VPG or virtual machine. This tab lists all the defined offsite backups and their statuses.

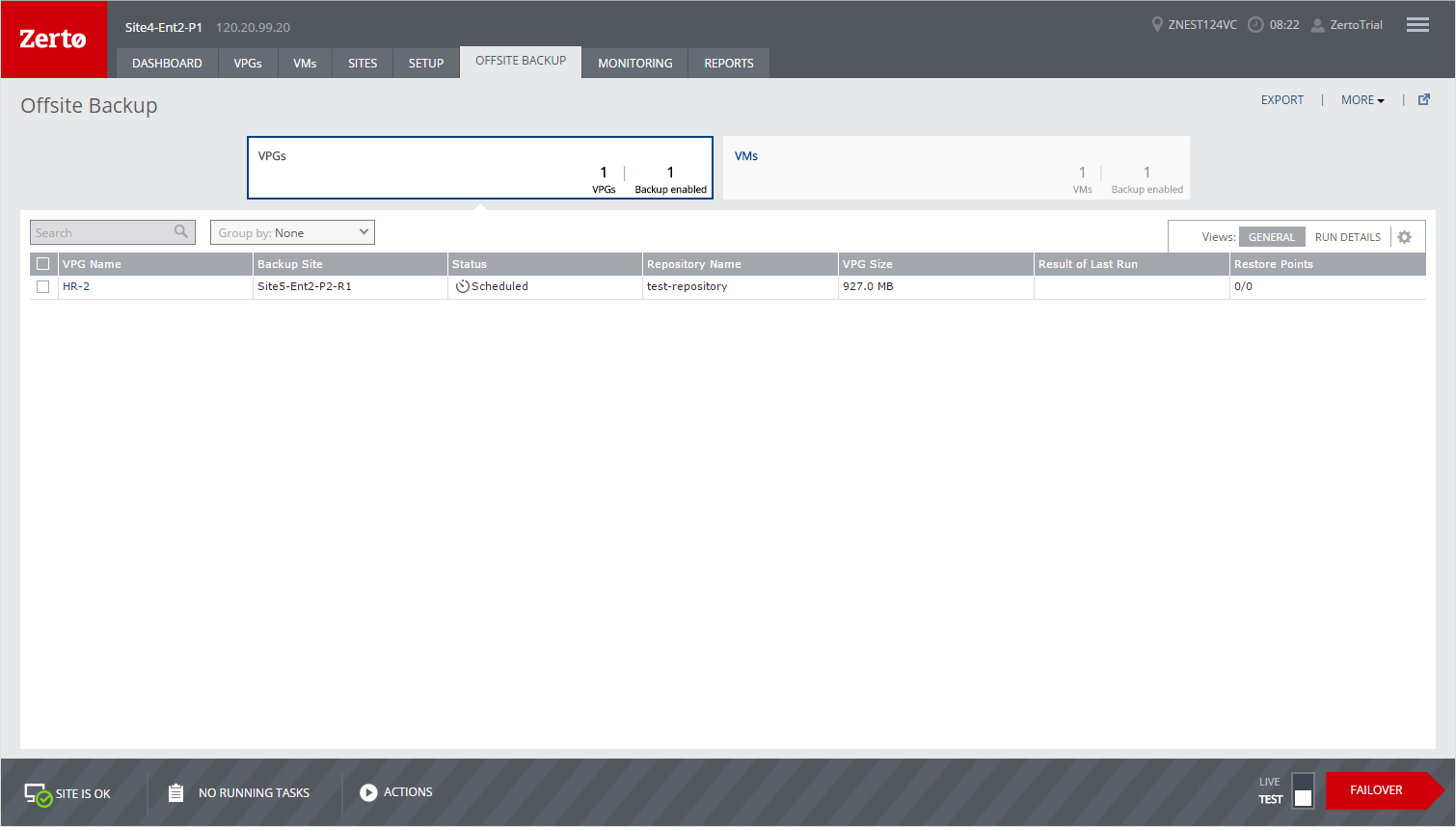

VPGs Tab
View details of the offsite backup jobs by VPG.
You can filter information in columns via the filter icon next to each column title. You can also sort the list by each column.
GENERAL View
The following information is displayed in the GENERAL view:
VPG Name – The name of the VPG.
Backup Site – The site where the VPG is backed up. The backup jobs are stored either locally at this site or on a network shared drive which is accessible from this site.
Status – The status of the job: Running or Scheduled.
Repository Name – The name of the repository where the job is stored.
VPG Size – The size of the VPG.
Result of Last Run – The result of the last run: Full success, Partial success, or Failed. If a backup job has not yet run on this VPG, the field is empty.
Restore Points – The restore points for the backup jobs out of the total backup jobs run for the VPG.
RUN DETAILS View
The following information is displayed in the RUN DETAILS view:
VPG Name – The name of the VPG.
Result of Last Run – The result of the last run: Full success, Partial success, or Failed. If a backup job has not yet run on this VPG, the field is empty.
Time of Last Run – The time of the last run. If a backup job has not yet run on this VPG, the field is empty.
Next Scheduled Run – The time of the next scheduled run.
Last Full Backup – The date and time of the last full backup.
Additional Fields
There are additional fields that you can display that are listed when you select
Show/Hide Columns from the dropdown list shown by clicking the configuration icon (
):
Protected Site – The name of the site.
Last Backup Size – The size of the last backup performed by Zerto Virtual Manager.
ZORG – A name given to an organization by a cloud service provider. For details refer to Zerto Cloud Manager Administration Guide.
# VMs – The total number of virtual machines protected by the VPG.
# of Volumes – The number of volumes protected by the VPG.
VMs Tab
View details of the offsite backup jobs by virtual machine.
You can filter information in columns via the filter icon next to each column title. You can also sort the list by each column.
GENERAL View
The following information is displayed in the GENERAL view:
VM Name – The name of the virtual machine.
VPG Name – The name of the VPG.
Protected Site – The name of the site where the VPG is protected.
Backup Site – The site where the virtual machine is backed up. The backup jobs are stored either locally at this site or on a network shared drive which is accessible from this site.
Status – The status of the job.
Repository Name – The name of the repository where the job is stored.
VM Size – The size of the VMs stored on disk.
Result of Last Run – The result of the last run: Full success, Partial success, or Failed.
Restore Points – The restore points for the backup jobs out of the total backup jobs run for the VPG.
RUN DETAILS View
The following information is displayed in the RUN DETAILS view:
VM Name – The name of the virtual machine.
VPG Name – The name of the VPG.
Result of Last Run – The result of the last run: Full success, Partial success, or Failed.
Time of Last Run – The time of the last run.
Next Scheduled Run – The time of the next scheduled run.
Last Full Backup – The date and time of the last full backup.
MORE Options
Click MORE > Edit to edit the backup parameters of the VPG.
Click MORE > Abort Backup to abort a running job. Any virtual machine volumes already stored in the repository are not removed and the job status is partial if there are any stored volumes.
Click MORE > Run Backup to start a job for a selected VPG, outside of the schedule for that VPG.
Click EXPORT to export the backup list as a Microsoft Excel worksheet.
Additional Fields
There are additional fields that you can display that are listed when you select
Show/Hide Columns from the dropdown list shown by clicking the configuration icon (
):
Last Backup Size – The size of the last backup performed by Zerto Virtual Manager.
ZORG – A name given to an organization by a cloud service provider. For details refer to Zerto Cloud Manager Administration Guide.
# of Volumes – The number of volumes associated with the VM.
