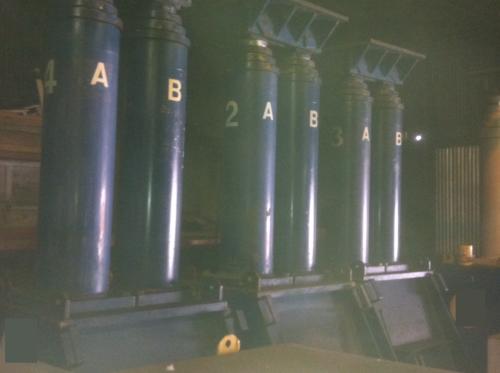

800 Ton Lift Systems Hydraulic Gantry Crane
- One (1) Model 48A
- Four (4) lifting units
- Two (2) hydraulic power systems
- Lifting Beams & Track Available
Author Archives: Dev

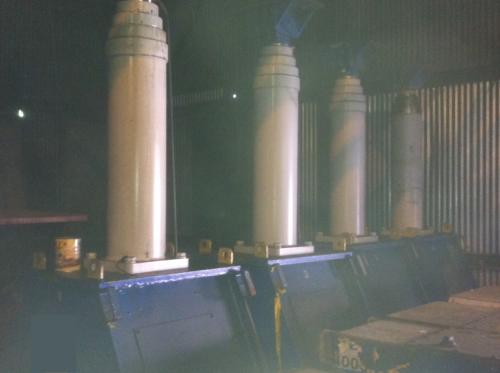

400 Ton Lift Systems Hydraulic Gantry Crane – 4 Point System
- 400 Ton Lift Systems Hydraulic Gantry Crane
- Two (2) Model 22A
- Four (4) lifting units and two (2) hydraulic power systems
- Lifting Beams & Track Available
I’m a Rigger – Keep me upto date on available equipment!
I’m a Manufacture – Click Here For Updates on Machines & Equipment
Mazak Multiplex 420 Twin Spindle Dual Turret
- Spindle is bad in this machine (not sure if it’s both or just one spindle)
- Control Mazatrol T 32-4
- Chucks (2) 8″ Diameter
- Max Swing 15.3″
- Max Cutting Diameter 10.2″
- Distance Between Spindles 45.6″
- Spindle Bore 2″
- Speed up to 4000 RPM
- Turrets (2) 12 Position
- Gantry Loader
Mazak Dual Turn 20 Twin Spindle – Two Available (one for parts only)
- Year 1996 & 1998 (1998 is for parts only)
- Mazatrol T Plus Control
- Chucks (2) 8″ Diameter
- Swing 12.6″
- Max Cutting Diameter 10″
- Distance Between Spindles 40.55″
- Spindle Bore 2″
- Speed to 5,000RPM
- Turrets (2) 12 Position
- Weight 13,200lbs
- Included Chip Conveyor
Mazak Multiplex 620 – 6 Axis Twin Spindle
- Max Swing Over Bed 15.35″
- Bar Capacity 2″
- Turning Diameter 10.24″
- Spindle Nose A2-6
- Spindle Thru Hole 2.55″
- X Axis Travel 9.05″
- Z Axis Travel, Left/Right Turret 16.92″/19.09″
- Turret Positions 12 x 2
- Rapid Traverse Speed 944.88 IPM
- Swing 12.8″
- Distance Between Spindles 46.45″
- Turrets (2) 12 Position w/live milling
- Power 25hp
- Speed up to 3600 RPM
- Weight 18,920lbs
- Control Mazatrol EIA-TA CNC
- These are the specifications to the best of our knowledge. Please research and check specifications to ensure vital details of the machine.
Mazak Multiplex 410 – Twin Spindle Dual Turret – Several Available
- Control: Mazatrol EIA-TA
- Chuck Size 6.5″ (2)
- Max Diameter of Bar Capacity 1.65″
- Distance Between Spindles 45.55″
- Spindle Bore 2″
- Spindle Nose A2-5
- Rapid Traverse Rates 945IPM
- X Axis Travel 7.87″
- Z Axis Travel 14.37
- Turret Index (single/full step) 0.4/1.2 Seconds
- Maximum Swing: 13.78″
- Turn Diameter: 9″
- Machining Length: 15″
- Bar Capacity: 1.65″
- Spindle Speed: upto 3600 RPM
- Main Motor: 15HP
- Turret Position: (2) 12 Position
- Machine Weight 15,400lbs
- Several available, Years from 1991 to 1998
-
- These are the specifications to the best of our knowledge. Please research and check specifications to ensure vital details of the machine.

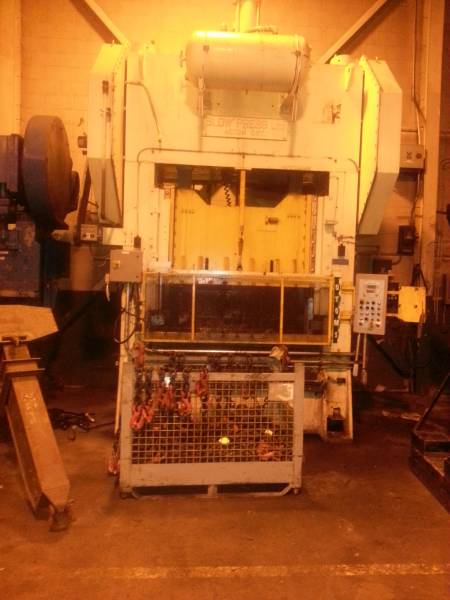

250 Ton Straight Side Blow Press
250 Ton Straight Side Blow Press
- Tonnage – 250
- Bed Area – 72″ x 40″
- Stroke – 8″
- Ram Adjustment – 9.75″
- Minimum Shut Height – 14.25″
- Maximum Shut Height – 24″
- Overall Height – Approx. 14ft.
- Floor Standing – Yes

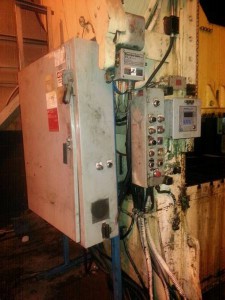

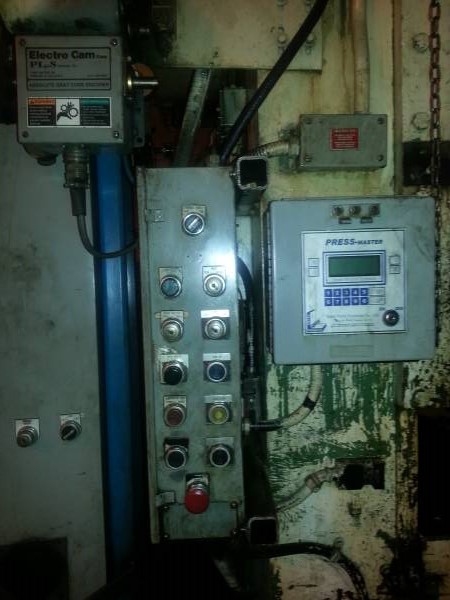

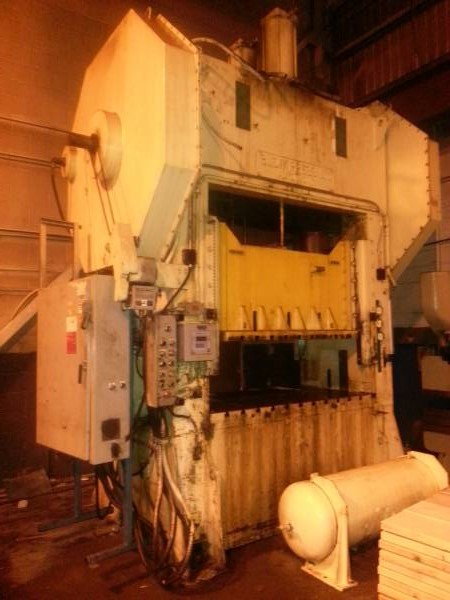

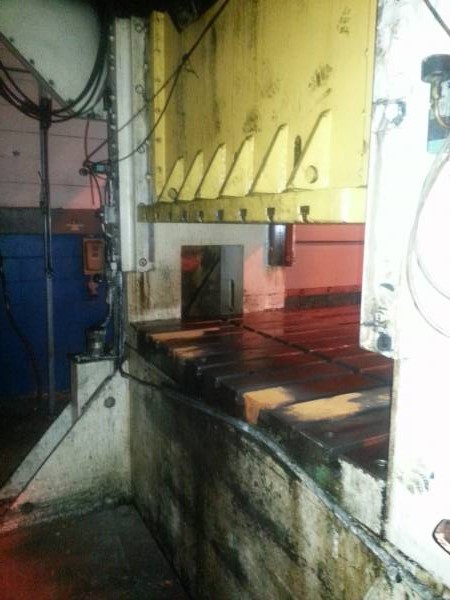

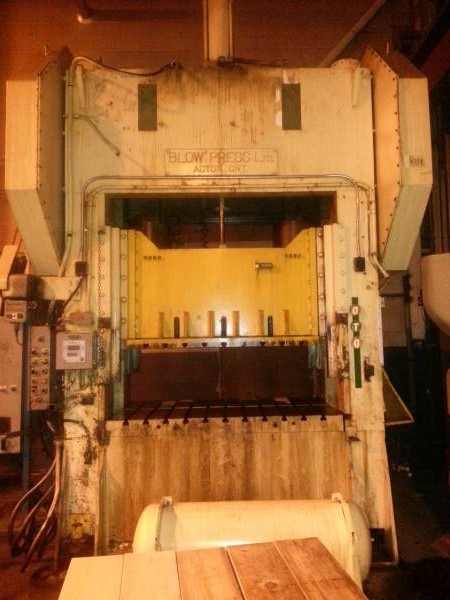

200 Ton Straight Side Blow Press
200 Ton Straight Side Blow Press
- Tonnage – 200
- Model – SD-20-72
- Bed Area – 72″ x 40″
- Stroke – 8″
- Ram Adjustment – 8″
- Minimum Shut Height – 12″
- Maximum Shut Height – 20″
- Overall Height – Approx. 14ft.
- Floor Standing – Yes

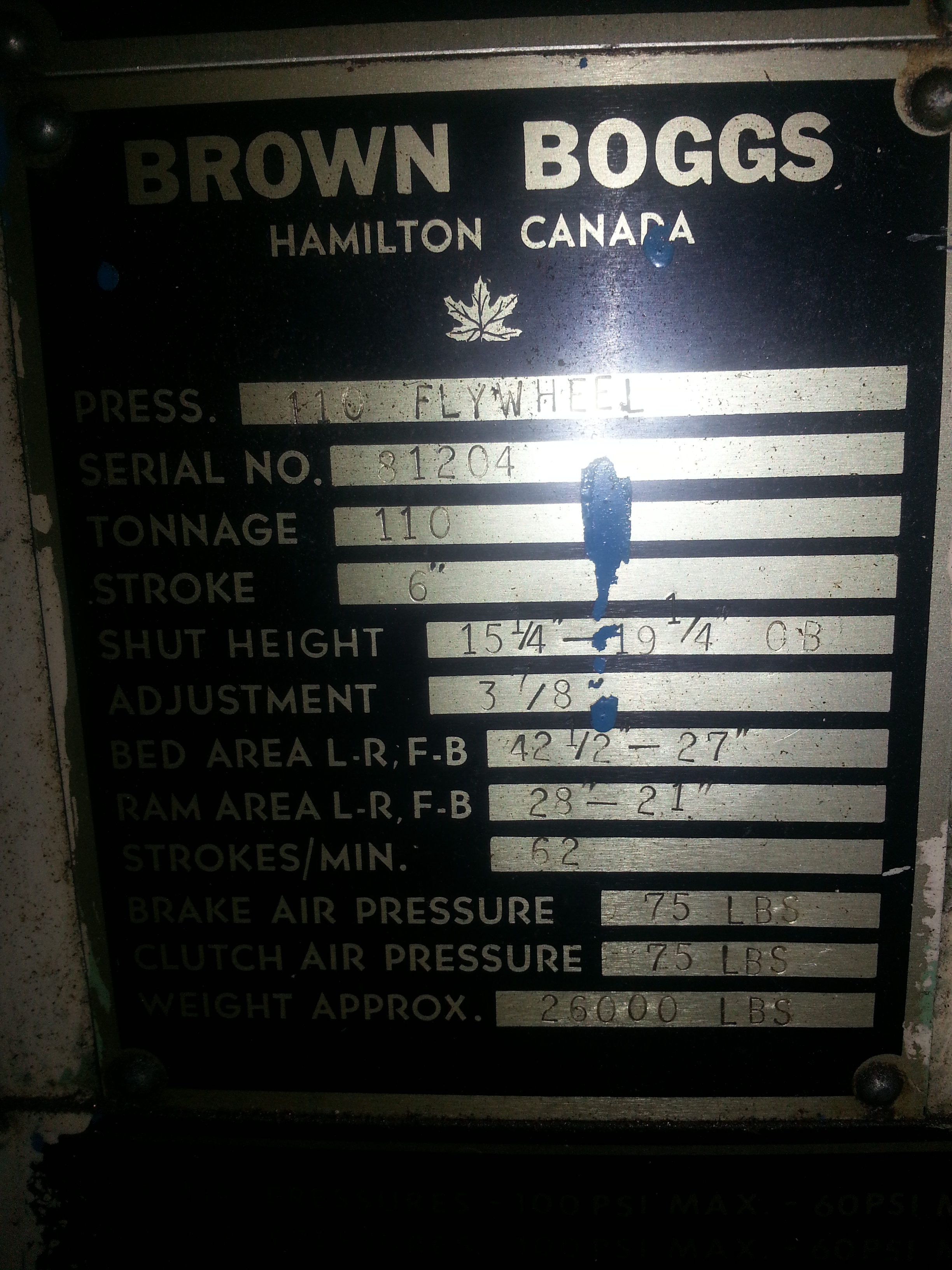

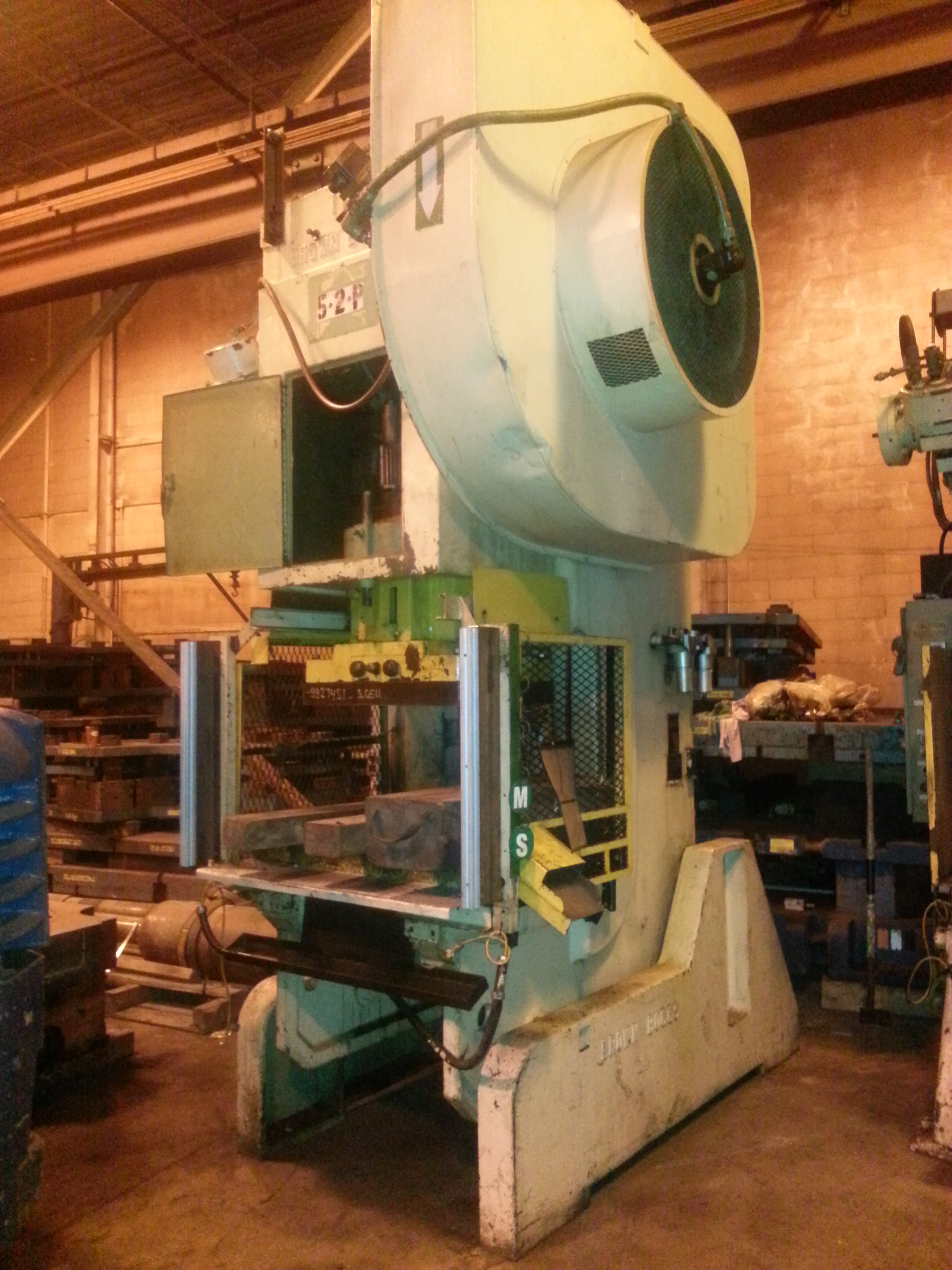

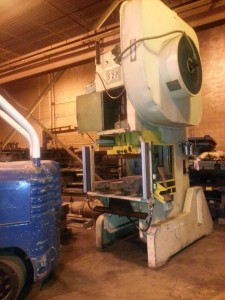

110 Ton Brown and Boggs OBI Press
110 Ton Brown and Boggs OBI Press
- Tonnage – 110
- Serial – 81204
- Stroke – 6″
- Shut Height – 15 1/4″ – 19 1/4″
- Adjustment – 3 7/8″
- Bed Area – 42 1/2″ – 27″
- SPM – 62

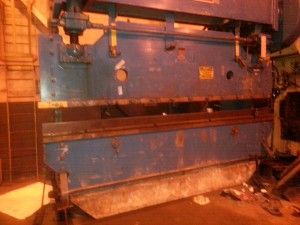

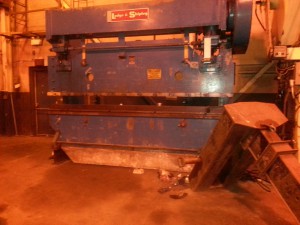

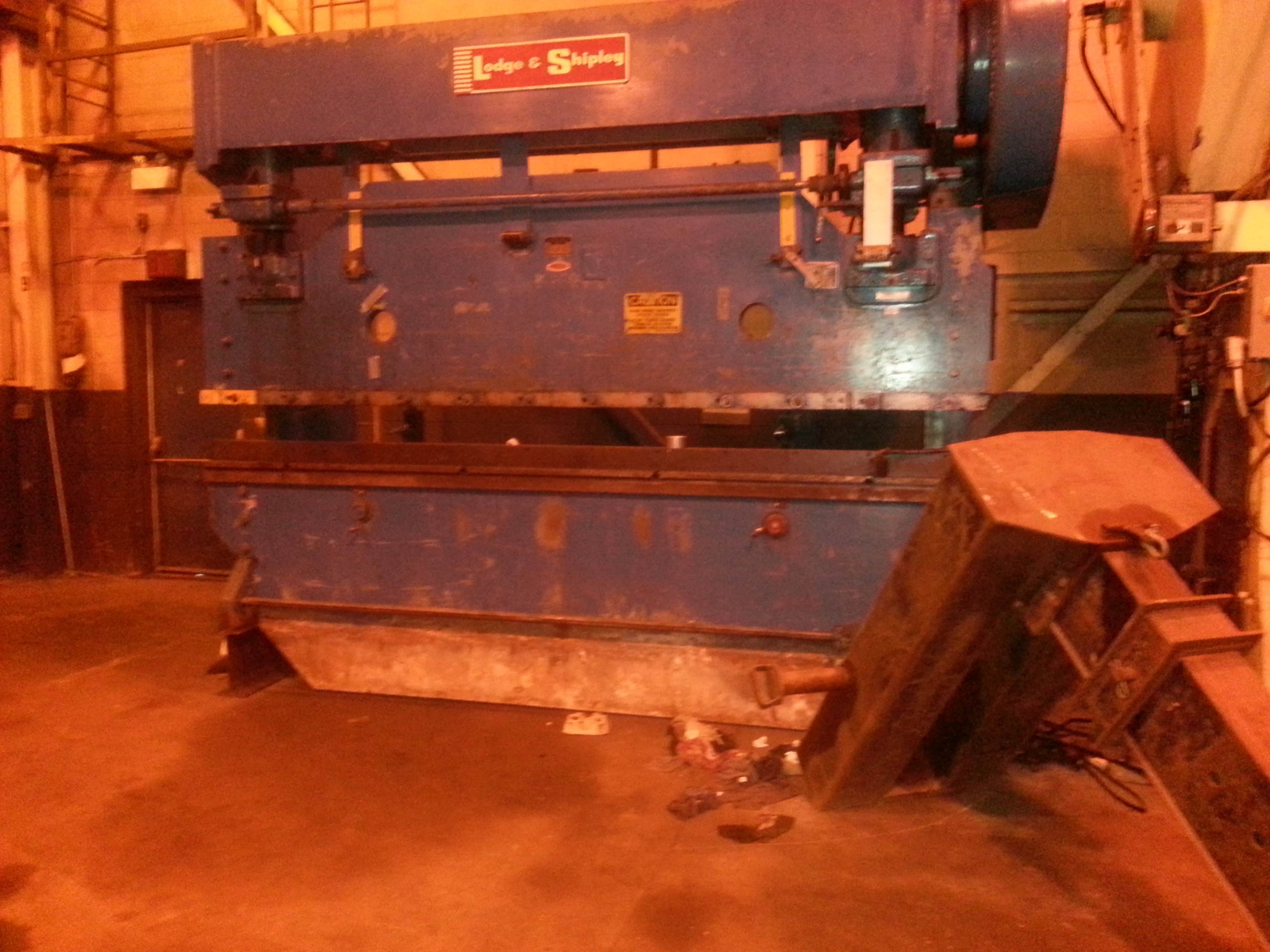

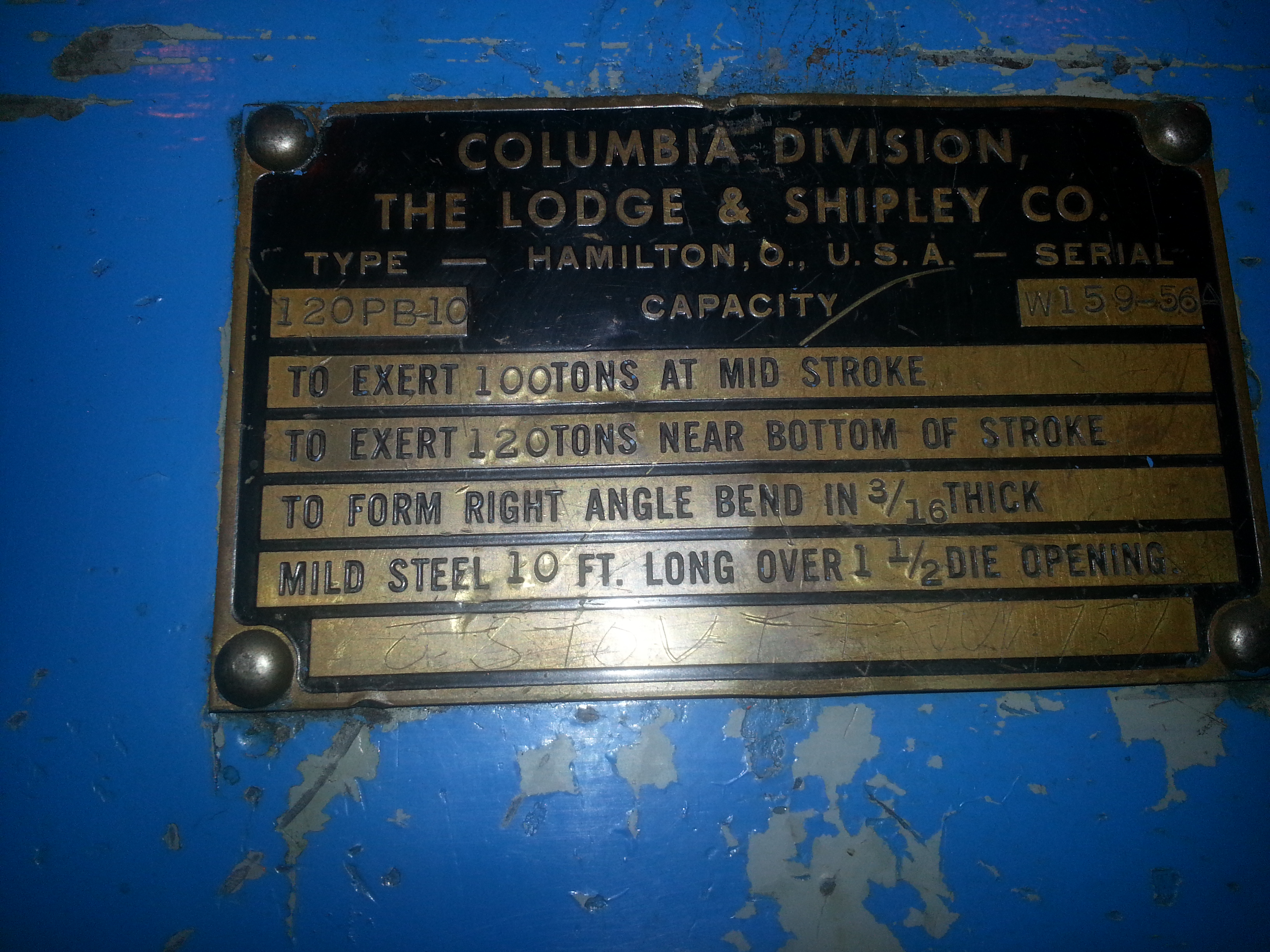

Lodge and Shipley Press Brake
Lodge and Shipley Press Brake
- Model – 120PB-10
- Capacity – 120 Ton
- Serial – W159-56
- Bed Length – 10ft.
