Table rice-2.0.krms_attr_defn_t Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ATTR_DEFN_ID varchar 255
krms_actn_attr_t.ATTR_DEFN_ID KRMS_ACTN_ATTR_FK2 R
krms_agenda_attr_t.ATTR_DEFN_ID KRMS_AGENDA_ATTR_FK2 R
krms_cntxt_attr_t.ATTR_DEFN_ID KRMS_CNTXT_ATTR_FK2 R
krms_rule_attr_t.ATTR_DEFN_ID KRMS_RULE_ATTR_FK2 R
krms_term_rslvr_attr_t.ATTR_DEFN_ID KRMS_TERM_RSLVR_ATTR_FK2 R
krms_typ_attr_t.ATTR_DEFN_ID KRMS_TYP_ATTR_FK1 R
NM varchar 100
NMSPC_CD varchar 40
LBL varchar 40  √  null
ACTV varchar 1 Y
CMPNT_NM varchar 100  √  null
VER_NBR decimal 8 0
DESC_TXT varchar 255  √  null

Table contained 11 rows at Mon May 07 20:18 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
ATTR_DEFN_ID Primary key Asc PRIMARY
NM + NMSPC_CD Must be unique Asc/Asc KRMS_ATTR_DEFN_TC1

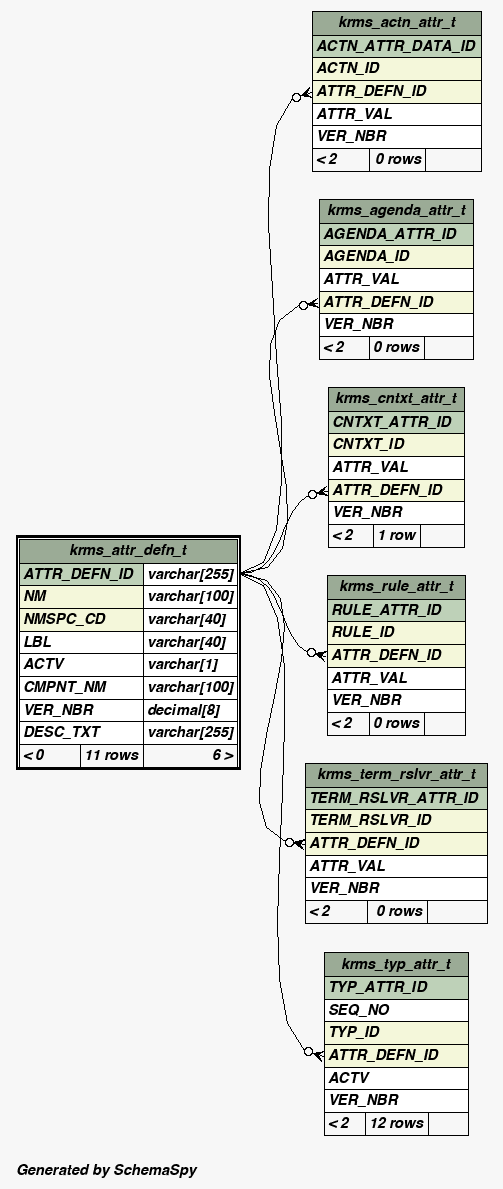

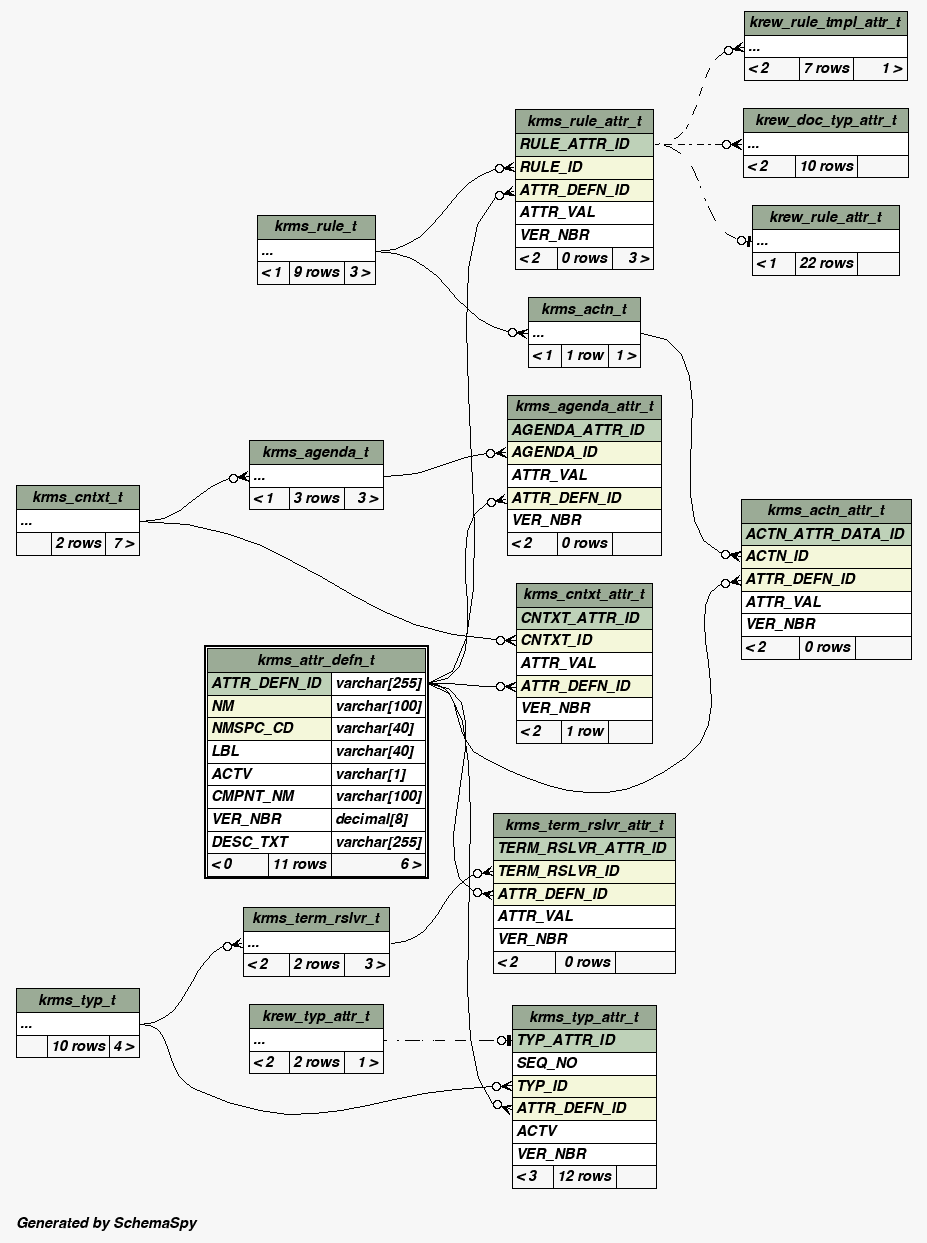

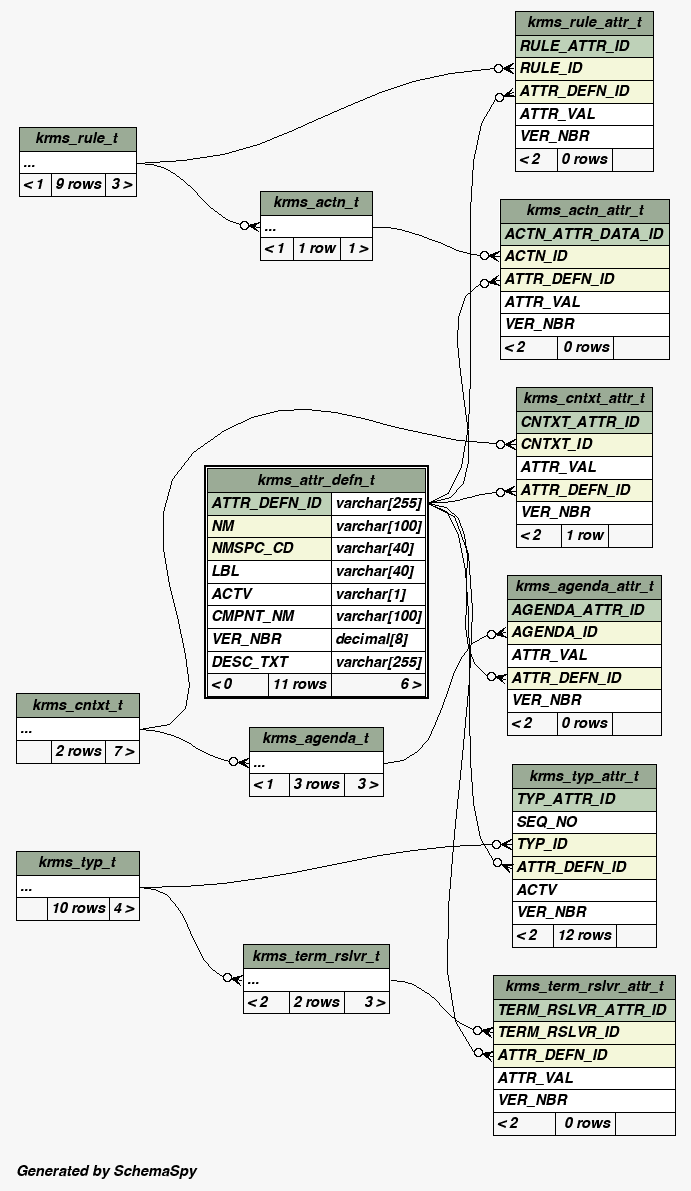

Close relationships  within of separation:
