Table rice-2.0.krim_typ_t Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
KIM_TYP_ID varchar 40
krim_dlgn_mbr_attr_data_t.KIM_TYP_ID KRIM_DLGN_MBR_ATTR_DATA_TR1 R
krim_dlgn_t.KIM_TYP_ID KRIM_DLGN_TR2 R
krim_grp_attr_data_t.KIM_TYP_ID KRIM_GRP_ATTR_DATA_TR1 R
krim_grp_document_t.KIM_TYP_ID Implied Constraint R
krim_grp_t.KIM_TYP_ID KRIM_GRP_TR1 R
krim_perm_attr_data_t.KIM_TYP_ID KRIM_PERM_ATTR_DATA_TR1 R
krim_perm_tmpl_t.KIM_TYP_ID KRIM_PERM_TMPL_TR1 R
krim_pnd_dlgn_mbr_attr_data_t.KIM_TYP_ID Implied Constraint R
krim_pnd_dlgn_t.KIM_TYP_ID Implied Constraint R
krim_pnd_grp_attr_data_t.KIM_TYP_ID Implied Constraint R
krim_pnd_grp_prncpl_mt.KIM_TYP_ID Implied Constraint R
krim_pnd_role_mbr_attr_data_mt.KIM_TYP_ID Implied Constraint R
krim_pnd_role_mt.KIM_TYP_ID Implied Constraint R
krim_role_mbr_attr_data_t.KIM_TYP_ID KRIM_ROLE_MBR_ATTR_DATA_TR1 R
krim_role_t.KIM_TYP_ID KRIM_ROLE_TR1 R
krim_role_v.KIM_TYP_ID Implied Constraint R
krim_rsp_attr_data_t.KIM_TYP_ID KRIM_RSP_ATTR_DATA_TR1 R
krim_rsp_tmpl_t.KIM_TYP_ID KRIM_RSP_TMPL_TR1 R
krim_typ_attr_t.KIM_TYP_ID KRIM_TYP_ATTRIBUTE_TR1 C
OBJ_ID varchar 36
VER_NBR decimal 8 1
NM varchar 100  √  null
SRVC_NM varchar 200  √  null
ACTV_IND varchar 1  √  Y
NMSPC_CD varchar 40  √  null

Table contained 39 rows at Mon May 07 20:18 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
KIM_TYP_ID Primary key Asc PRIMARY
OBJ_ID Must be unique Asc KRIM_TYP_TC0

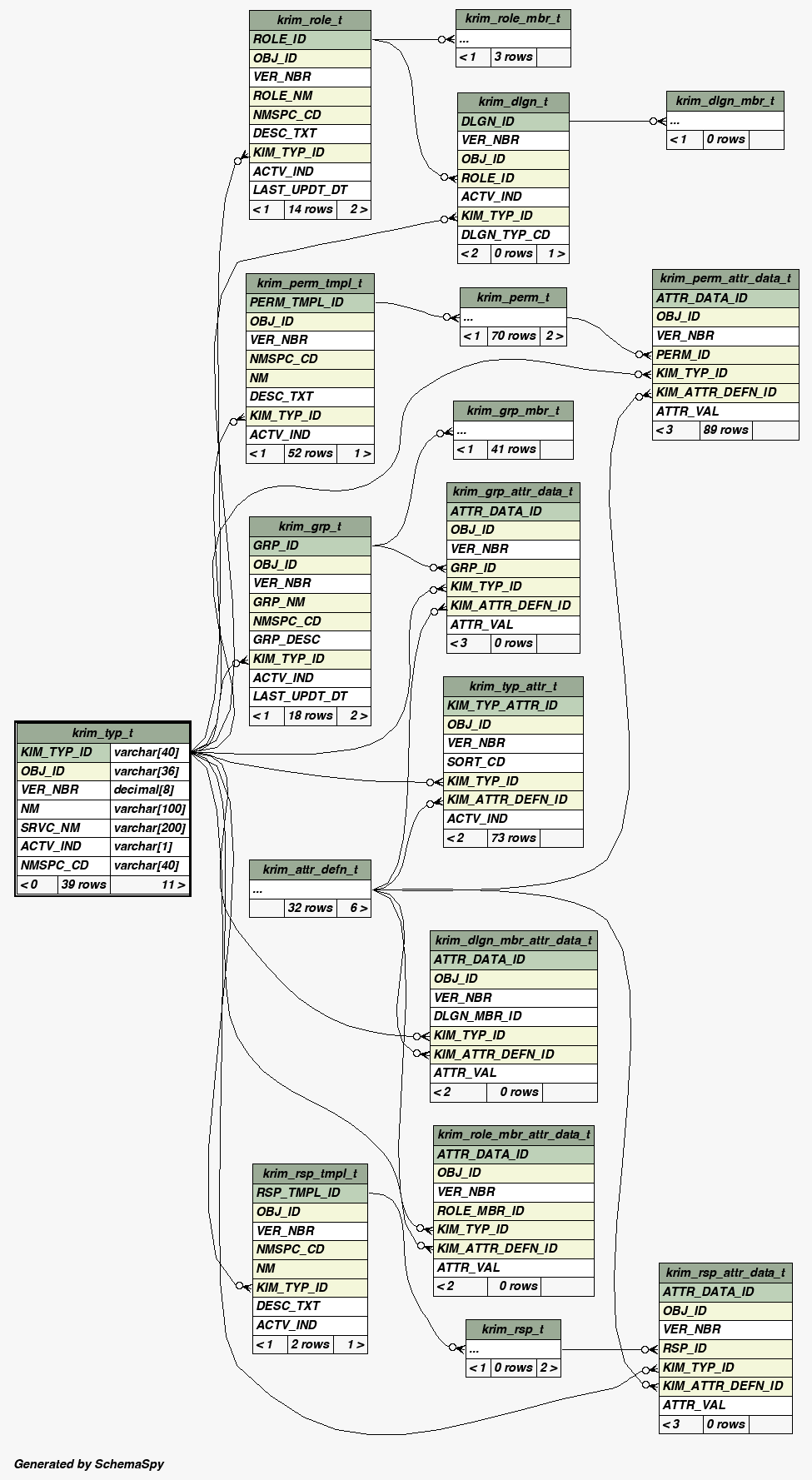

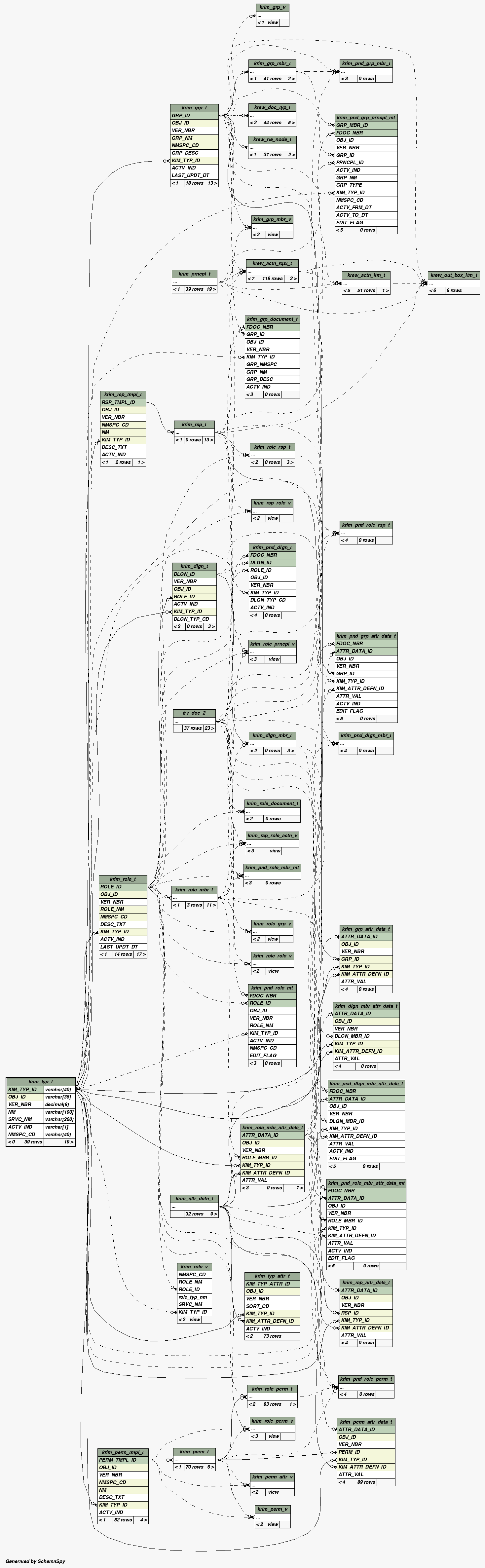

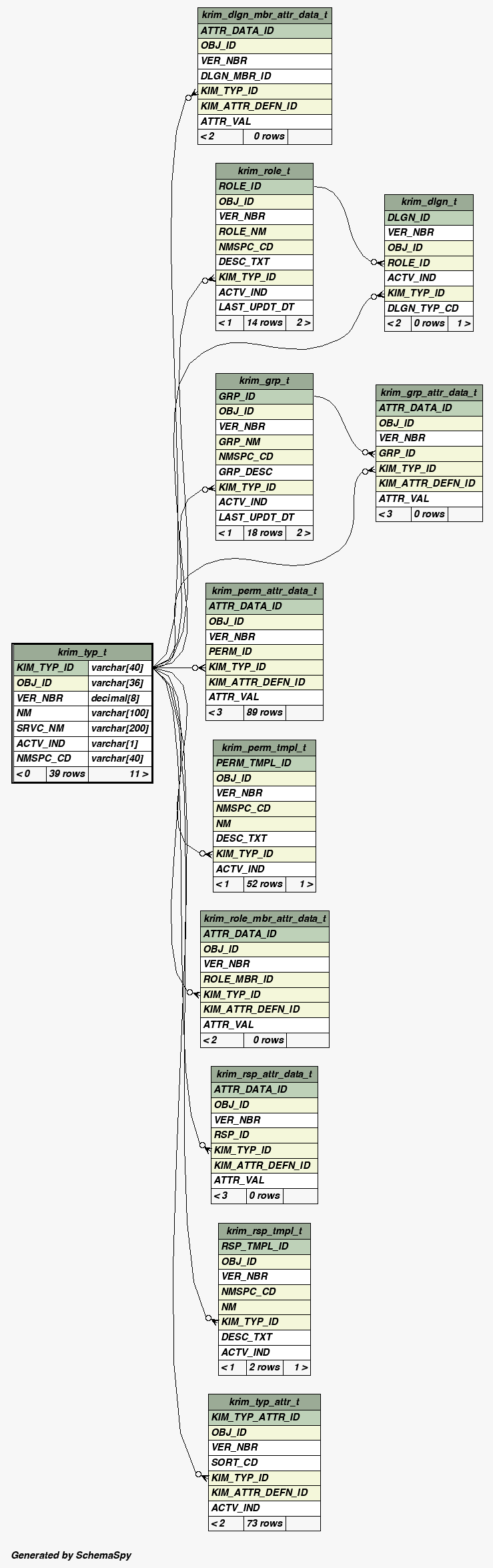

Close relationships  within of separation:
