Table rice-2.0.krim_entity_visa_t Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ID varchar 40
trv_acct_use_rt_t.ID Implied Constraint R
ENTITY_ID varchar 40  √  null
krim_entity_t.ENTITY_ID KRIM_ENTITY_VISA_TR1 R
VISA_TYPE_KEY varchar 40  √  null
VISA_ENTRY varchar 40  √  null
VISA_ID varchar 40  √  null
VER_NBR decimal 8 1
OBJ_ID varchar 36

Table contained 0 rows at Mon May 07 20:18 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
ID Primary key Asc PRIMARY
OBJ_ID Must be unique Asc KRIM_ENTITY_VISA_TC0
ENTITY_ID Performance Asc KRIM_ENTITY_VISA_TR1

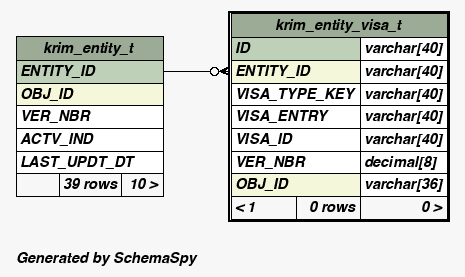

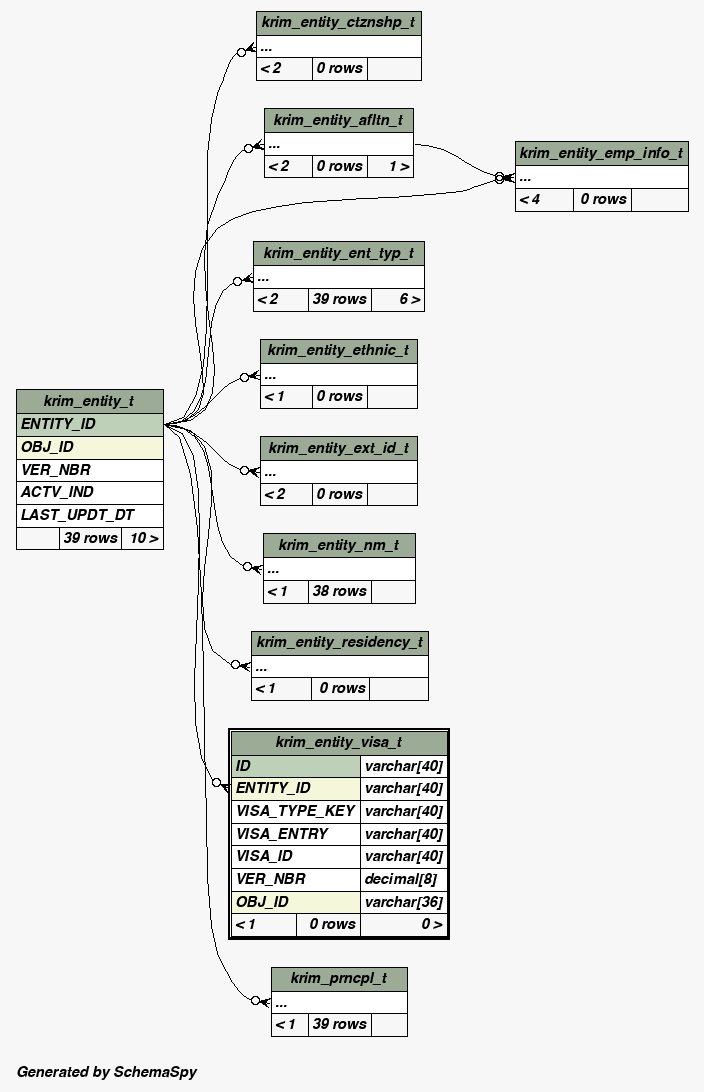

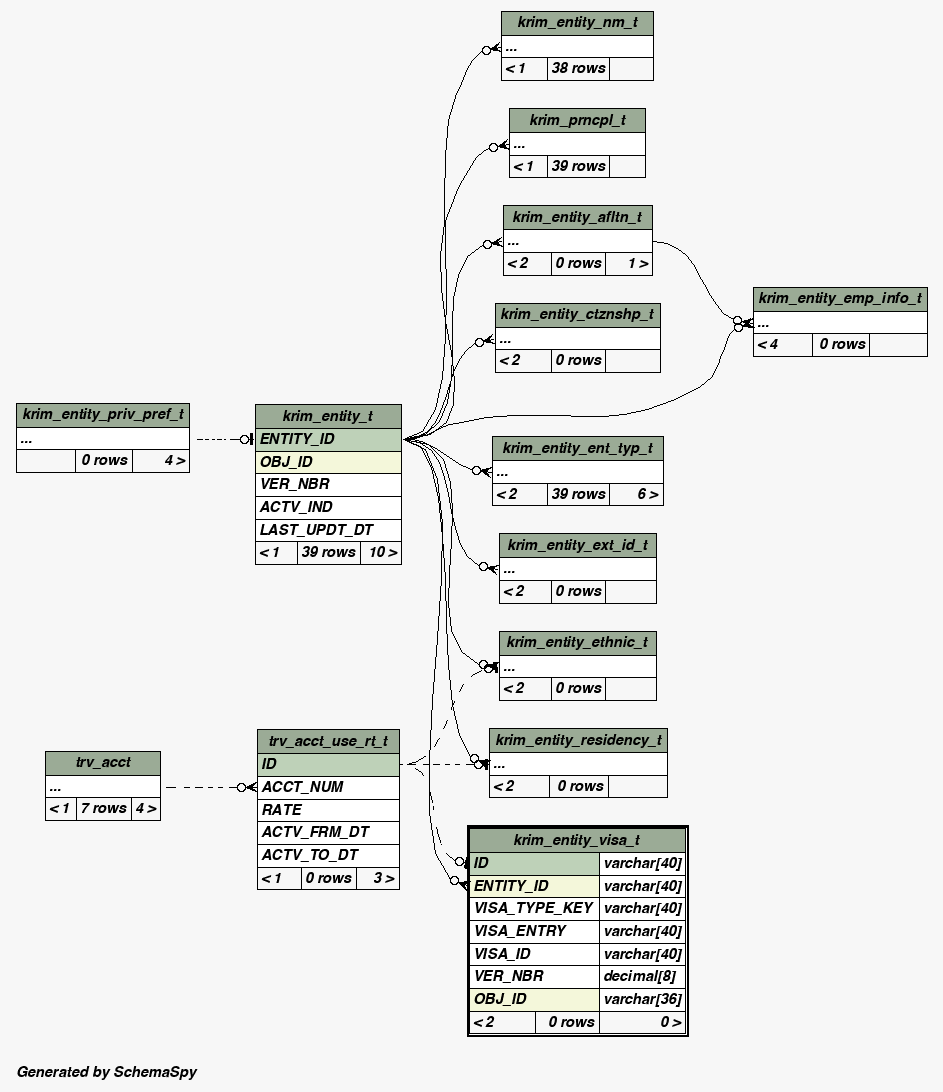

Close relationships  within of separation:
